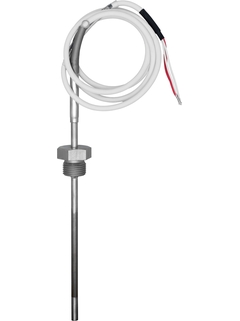

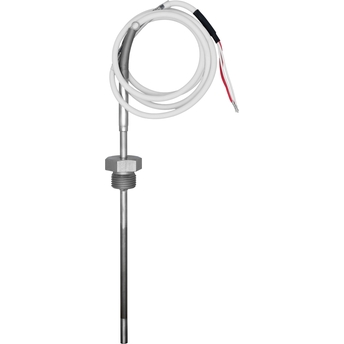

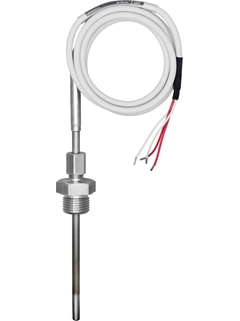

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.
The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.
Benefícios
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)
Este white paper explica como os sensores de temperatura calibráveis podem ser usados em engenharia de processos higiênicos. Ele detalha teoria e prática, bem como exemplos de aplicação. Saiba mais!
A Iplom SpA estava tentando otimizar seu processo de refino para prolongar a vida útil do catalisador e aumentar a segurança em uma aplicação de hidrodessulfuração (HDS) por meio do perfil preciso da temperatura 3D.
at 20°C: up to 75 bar (depending on the process connection)
Accuracy
class A acc. to IEC 60751 class B acc. to IEC 60751 class AA acc. to IEC 60751
Response time
t50 = 3 s t90 = 6 s
Integration head transmitter
no
Ex - approvals
ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6 ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6 ATEX II1G Ex ia IIC T6 ATEX II 3 G Ex nA IIC T6, II3D NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450 EAC Ex ia UK II1G Ex ia IIC T6 Ga UK II1/2D Ex ia IIIC Da/Db, II1G Ex ia IIC T6 Ga UK II1D Ex ia IIIC Da, II1G Ex ia IIC T6 Ga UK II 3 G Ex nA IIC T6 Gc, II3D Ex tc IIIC Dc IECEx Ex ia IIC T6 Ga NEPSI Ex nA IIC T6
