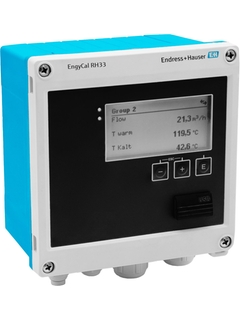

Product picture BTU meter RH33

EngyCal RH33
BTU meter

Custody transfer BTU meter for recording heat quantities of water

RH33
Please Wait (spinning wheel)
Carregando preços
Preço temporariamente indisponíveis
Price on request
ativando preços
preço: fornecer informações
from CHF ??.-

Especificações resumidas

  • Input

    1x Puls/Analog
    2x RTD/Analog
    Loop power supply 24V DC (+/-16%)

  • Output

    1x 4...20mA
    2x digital (Open Collector)

  • Display

    160 x 80 Dot-Matrix LCD with white backlit
    colour change in case of alarm event
    active display area 70 x 34 mm

  • Calculations

    heat quantity and heat quantity difference

Campo de aplicação

The BTU meter RH33 is used in applications with liquid energy carriers.
It calculates the thermal energy of water acc. to EN1434, glycol/water mixtures or other fluids such as thermal oils. Temperature sensor matching using calibrated temperature sensors is done in the device.
Potential for cost savings can be shown by using the software available as an accessory.
The device has a custody transfer approval and allows bi-directional measurement, e.g. charging/discharging of a heat accumulator.

Recording and billing the quantities of heat and cold in:

  • Heating circuits

  • Cooling circuits

  • Combined heating and cooling circuits

Typical application areas in industry, long-distance heat networks and building automation.

Benefícios

  • Transparent energy consumption helps you save on energy costs

  • Calibrated, electronically paired temperature sensors ensure the highest accuracy and enable replacement of individual temperature sensors even for certified devices in the field (without reapproval!)

  • Tariff counter for requirements-based billing

  • Detailed data logging of current and counter values and of error messages, off-limit conditions and changes to operating parameters

  • Standard models are suitable for connecting and supplying all common volume flow transmitters and temperature measuring points

  • Remote readout via Ethernet and fieldbuses

  • Verified and certified reliability and accuracy
