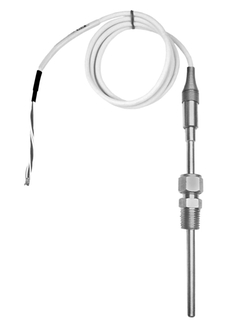

South African style RTD sensor, cable probe
Appropriate for all temperature measurement applications where small immersion lengths are needed
Easy installation - with adjustable compression fitting or without process connection - various diameter inserts and customized immersion lengths lead to a high flexibility. The probe is suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc.
Pt100 measuring element according to IEC 60751 with an accuracy Class A according to IEC 60751 and Band 5 (1/10 DIN)
Customized immersion length
Sheath material 316SS/L
Campo de aplicação
This assembly is specially suited to temperature measurement in machinery, laboratory equipment and experimental plants in gaseous or liquid media like air, water, oils and others.
It comprises of various diameter fixed inserts with flexible tails. To...
