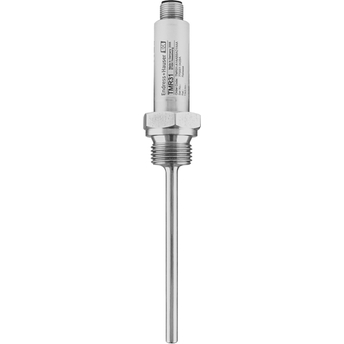

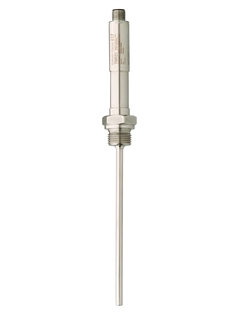

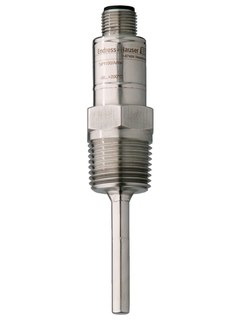

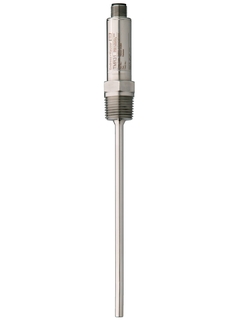

Compact, fast and precise for the measurement of process temperatures in common industries
With cost efficiency, optimal use of space, reliable operation, easy installation and commissioning the TMR31 fulfills the requirements of modern process measurement technology. Vibration-proof integrated thin-film sensors guarantee highest operational safety at the fastest response times.
Small, compact design made entirely of stainless steel
Extremely short response times
Highly accurate even with short insertion lengths
4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output
Configuration and visualization with ReadWin® 2000 PC...
Campo de aplicação
The Easytemp TMR31 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR31 with process connections for...
Documentos / Manuais / Software
Acessórios / peças sobressalentes
The unit is not repairable
Order code 60001328
Gasket DIN7603 A CU 21x26x1.5
Order code 51008433
TAG print/configuration 2 x 18 char
Order code 51010487
Label paper 3 x 16 char
Order code 51007657
Adapter Upgrade TXU10
4 pin plug to M12.
Order code 51004751
Collar welding boss d6 PEEK + screw
moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)
Order code 51004752
Collar welding boss d6 PEEK w/o screw
moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)
Order code 51007599
Screw G1/2" + Sealing cone PEEK
Order code 51005148
Cable M12x1 l=5m
5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.
Order code 51006327
M12 elbow plug ready for cable, IP67,PG7
Order code 71217708
Cordset 4p D18 IP69K
PVC cable, 4 x 0.34 mm2 (22 AWG) with M12x1 coupling nut from stainless steel; straight female connector type; screw plug; length 5 m (16.4 ft); IP69K.
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
Order code TA50-
Compression Fitting TA50
Order code RXU10-
Accessories Datamanager RXU10
