Especificações resumidas
-
Max. process pressure (static)
40 bar (580 psi)
-
Maximum standard immersion length
48" (1.219 mm)
Campo de aplicação
Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular re-calibration by simply replacing the insert in closed processes.
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Pressure range up to 40 bar (580 psi)
For increased protection requirements of the temperature sensor regarding physical and chemical effects
For use in pipes and containers or tanks
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes
Benefícios
-

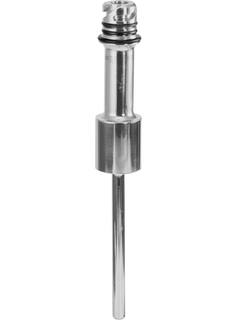

iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration of the insert used
-
All common hygienic process connections
-
International certification: hygiene standards as per 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
-
Fast response time owing to reduced tips with thin walls
-
State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
Versão Fundamental
-
Produtos simples
- Fácil de escolher, instalar e operar
Excelência técnica
Simplicidade

-
Produtos com tecnologia de ponta
- Altamente funcional e prático
Excelência técnica
Simplicidade
-
Produtos especializados
- Desenvolvidos para aplicações exigentes
Excelência técnica
Simplicidade
Variável
Versões FLEX | Excelência técnica | Simplicidade |
---|---|---|
Versão Fundamental Atende suas necessidades básicas de medição |
Excelência técnica
|
Simplicidade
|
Versão Lean Lida com seus principais processos facilmente |
Excelência técnica
|
Simplicidade
|
Seleção Extended Otimiza seus processos com tecnologias inovadoras |
Excelência técnica
|
Simplicidade
|
Versão Xpert Controla suas aplicações mais difíceis |
Excelência técnica
|
Simplicidade
Variável |
Predecessor
-
-
Informações Técnicas (TI)
iTHERM TT412
Sensor de temperatura - poço para termoelemento para aplicações higiênicas e assépticas
EN PT 29/07/202213/01/202131/10/201804/08/2017Idioma:
Português
Versão:
29/07/2022
Tamanho do arquivo:
1.2 MB
Nome do arquivo:
TI01350TPT_0422-00.pdf
-
-
-
Informações Técnicas (TI)
Weld-in adapter, process adapter and flanges
Level and pressure measurement
EN PT 15/09/202328/10/202119/06/202008/11/201917/08/2017Idioma:
Português
Versão:
28/10/2021
Tamanho do arquivo:
2.7 MB
Nome do arquivo:
TI00426FPT_2321.pdf
-
-
-
Documentação especial (SD)
Device viewer
Technical documentation in other languages
Idioma:
Inglês
Versão:
14/07/2021
Tamanho do arquivo:
478.5 KB
Nome do arquivo:
SD02429R09EN_0121.pdf
-
-
-
PU (publicação)
iTHERM TT411, TT412 Innovative thermowell designed for hygienic applications
The new iTHERM TT4xx tee and elbow thermowell elements are ideally suited for applications in the life sciences and food & beverage industries where hygienic design and optimized measurement are key. A state-of-the-art mechanical engineering process guarantees a construction without welds and dead legs for precise, safe and clean operation.
Idioma:
Inglês
Versão:
08/08/2022
Tamanho do arquivo:
1.2 MB
Nome do arquivo:
PU01246T_09_EN_04.22 TT4xx.pdf
-
-
-
PU (publicação)
iTHERM TT411, TT412 Innovatives Schutzrohr, für Hygieneanwendungen entwickelt
Moderne T- und Eck-Schutzrohre Die neuen iTHERM TT4xx T- und Eck-Schutzrohrelemente sind ideal für Anwendungen in der Pharma- sowie der Lebensmittel- & Getränkeindustrie geeignet, in welchen eine hygienische Bauformund optimierte Messungen oberste Priorität haben.
Idioma:
Alemão
Versão:
14/09/2022
Tamanho do arquivo:
1.2 MB
Nome do arquivo:
PU01246T_09_DE_04.22 TT4xx.pdf
-
-
-
Declaração do Fabricante
Product family: Accessories: Pipe thermowell, Magphant, PROCESS RTD HYGIENIC, RTD-THERMOMETER
Product root: DTT35-, TK40-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TT411-, TT412-, TTR35- {Z MMM_DECLARATION_NUMBER}: HE_01097_01.19 Manufacturer specification: Food hygiene
Idioma:
Inglês
Versão:
28/03/2022
Tamanho do arquivo:
367.6 KB
Nome do arquivo:
HE_01097_02.23 MD-22010 19002.pdf
-
-
-
Declaração do Fabricante
Product family: Accessories: Pipe thermowell, Accessories: Inserts, PROCESS RTD HYGIENIC, RTD thermometer
Product root: TK40-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TS111-, TS212-, TT411-, TT412- Declaration number: HE_00886_01.17 Additional information: TSE compliance, animal fat free
EN PT 23/10/2017Idioma:
Inglês
Versão:
23/10/2017
Tamanho do arquivo:
160.7 KB
Nome do arquivo:
HE_00886_0117.pdf
-
-
-
Declaração do Fabricante
Product family: Accessories: Pipe thermowell, Magphant, PROCESS RTD HYGIENIC, RTD-THERMOMETER
Product root: DTT35-, TK40-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TT411-, TT412-, TTR35- Declaration number: HE_00099_05.15 Manufacturer specification: Food hygiene, 10/2011, 1935/2004
EN PT 10/12/2020Idioma:
Inglês
Versão:
10/12/2020
Tamanho do arquivo:
1.8 MB
Nome do arquivo:
HE_00099_05.15.pdf
-
-
-
Declaração do Fabricante
Product family: Accessories: Bar stock thermowell, Accessories: Pipe thermowell, Accessories: Inserts, Magphant, Process RTD general purpose, Process RTD hygienic, RTD thermometer
Product root: DTT31-, DTT35-, TK40-, TM101-, TM111-, TM121-, TM131-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TS111-, TS212-, TT131-, TT151-, TT411-, TT412- Declaration number: HE_01494_01.21 Manufacturer specification: Food hygiene Additional information: BSE, TSE
Idioma:
Inglês
Versão:
27/07/2023
Tamanho do arquivo:
266 KB
Nome do arquivo:
HE_00886_07_17.pdf
-
-
-
Declaração do Fabricante
Product family: Process RTD hygienic
Product root: TK40-, TM401-, TM402-, TM411-, TM412-, TS111-, TS112-, TT411-, TT412- Declaration number: MD-12028A-9
Idioma:
Inglês
Versão:
10/01/2013
Tamanho do arquivo:
872.7 KB
Nome do arquivo:
MD-12028a_09_e.pdf
-
