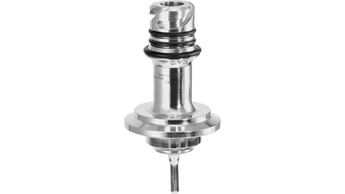

U.S. Style thermowell TU67

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Bar stock Thermowell

  • Characteristic / Application

    US-style

    hygienic / aseptic design (3-A®, ASME BPE)

    hygienic process Connections

  • Head connection

    internal thread:

    1/2" NPT

  • Maximum standard immersion length

    4.5"

  • Max. immersion length on request

    32''

  • Process connection

    Tri-Clamp:

    1"

    1.5"

    2"

    2.5"

    3"

  • Thermowell root diameter

    1/2"

  • Medium contact material

    316/ 316L

    others on request

  • Wetted part finishing (Ra)

    32 µin (0.80 µin)

    15 µin (0.38) µin

  • Tip shape

    straight

    reduced

  • Temperature range

    -200…600 °C (-328...1.112 °F)

  • Max. process pressure (static)

    depends on configuration

  • Max. process pressure at 400 °C

    depends on configuration
