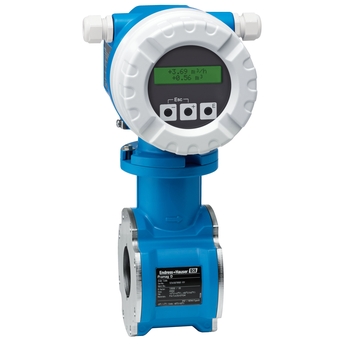

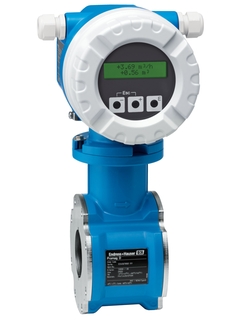

Promag 10D

std_productprofile_product_usp_8063.
For basic water applications, optimized for limited space and plastic pipe installations.

Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
std_productprofile_product_differentiating_tech_features_8071. std_productprofile_product_differentiating_tech_features_8072. International drinking water approvals.

std_productprofile_product_benefits_34707_1508943674. std_productprofile_product_benefits_34705_1508943673. std_productprofile_product_benefits_34706_1508943673.
2-line display with push buttons. Device as compact or remote version. HART.

DN 25 to 100 (1 to 4")

Liner: Polyamide
Electrodes: 1.4435 (316L)

Volume flow

Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)

9 to 4700 dm3/min (2.5 to 1250 gal/min)

PN 16, Class 150, 10K

0 to +60 °C (+32 to +140 °F)

–20 to +60 °C (–4 to +140 °F)

AlSi10Mg, coated
Sensor connection housing: AlSi10Mg, coated

Powder‐coated die‐cast aluminum

Compact version: IP66&67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP 67, type 4X enclosure

2‐line display with push buttons
Configuration via local display and operating tools possible

4‐20 mA HART (active)
Pulse/switch output (passive)

None

HART

DC 11 to 40 V
AC 85 to 250 V (45 to 65 Hz)
AC 20 to 28 V (45 to 65 Hz)

FM
CSA

CE, C-tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

Drinking water approval: ACS, KTW-BWGL, NSF 61, WRAS BS 6920
