iTHERM ModuLine TM101

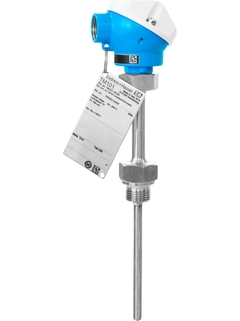

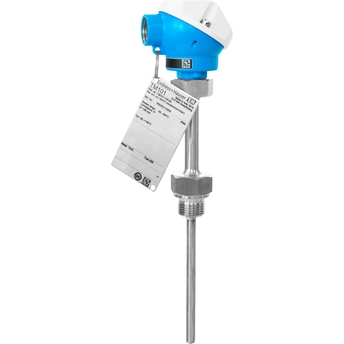

Product picture of RTD or TC thermometer TM101 ©Endress+Hauser

RTD or thermocouple temperature probe for direct installation in various industrial applications

Basic thermometers offer reliable temperature measurement performance with basic sensor technology, a standard extension neck and a fixed, non-replaceable insert for use in non-hazardous areas. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

Seleção rápida

Escolha uma das opções sugeridas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

TM101
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

Componentes adicionais

  • Benefícios

    • Excellent value for money and fast global delivery

    • User-friendly product selection, smart design for easy maintenance

    • Wide range of process connections

    • Bluetooth® connectivity (optional)

  • Campo de aplicação

    • Wide range of applications

    • Measuring range: -50 to +650 °C (-58 to +1202 °F)

    • Pressure range: up to 50 bar (725 psi)

    • Protection class: up to IP68

    • For use in non-hazardous areas

Características e especificações

Voltar

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    Basic technologie

    metric style

    universal range of application

    direct process contact

  • Thermowell / protection tube

    without, direct process contact

  • Insert / probe

    Basis Sensortechnologie

  • Outer diameter protection tube / Insert

    Insert:

    6,0 mm

  • Max. immersion length on request

    up to 1.000,0 mm (39'')

  • Material protection tube/ thermowell

    Insert Material:

    316L (1.4404)

    Alloy 600 (2.4816)

  • Process connection

    Thread:

    G1/2", G1/4"

    NPT1/2"

    M18x1.5, M20x1.5

    Cap-nut:

    G1/2", G3/4"

    Compression fitting, also spring load:

    NPT1/2", G1/2"

  • Tip shape

    straight

  • Operating temperature range

    Basic PT100 TF:

    -50 °C …200 °C

    (-58 °F …392 °F)

    Thermocouple:

    Typ K up to 600 °C (1.112 °F)

  • Max. process pressure (static)

    depending on the configuration

  • Accuracy

    Class A acc. to IEC 60751

    Class B acc. to IEC 60751

    Class standard acc. to ASTM E230

    Class 2 acc. to IEC 60584-2

  • Response time

    t90 around 17 s

    depending on configuration

  • Integration head transmitter

    yes (4 … 20 mA; HART)

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
    • Order code 71367427

      Spare parts kit ring D21/di 10xgreen,10p

      Packing unit: 10 pieces

    • Order code 71182602

      Spare parts kit sealing TA30A/TA30D

      5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75

    • Order code 71367414

      Spare parts kit copper ring G1/2",(10 p)

      Packing unit: 10 pieces

    • Order code 71367420

      Spare parts kit copper ring G3/4",(10 p)

      Packing unit: 10 pieces

    • Order code 71367425

      Spare parts kit copper ring M20x1.5(10p)

      Packing unit: 10 pieces

    • Order code 71369768

      O-Ring 71X3 silicone 70° Shore A

    • Order code 71438347

      Spare parts kit copper ring M18 (10 p)

      Packing unit: 10 pieces

    • Order code TK40-

      iTHERM TK40 Compression Fitting

      Weld-in compression fitting with hygienic design. For applications in the food/ beverages and pharmaceutical industries.

    • Order code TA20AB-

      Terminal Head TA20AB

      Terminal head for temperature assemblies, simple execution, lid fixed by screws. Inner geometry acc. to DIN EN 50446.

    • Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Order code TA30EB-

      Terminal Head TA30EB

      Retainer for terminal block or head transmitter + optional display. Cover: low, threaded, optional window. Material: Aluminium. Coating: Polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...+150oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Order code TS111-

      Insert iTHERM TS111

      Replaceable. Metric version according DIN43735.

    • Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code DIENST-

      SERVICE
