TH17

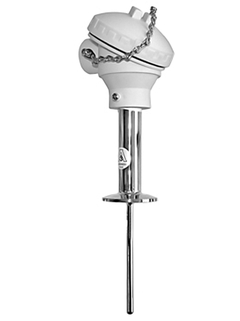

Modular, hygienic RTD thermometer, US style

TH17 Modular, hygienic RTD thermometer, US style ©Endress+Hauser

Designed for use in hygienic and aseptic applications in Food&Beverages and Life Sciences industries

Typical processes in the food & pharmaceutical industry demand special functions such as fast response times and high accuracy of temperature measurement. With a straight or reduced tip form and a combined insert with the neck tube, it is possible to realize best thermal response times. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability.

Componentes adicionais

  • Benefícios

    • Meets 3-A sanitary standards

    • Meets PMO requirements by US FDA for dairies

    • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point...

  • Campo de aplicação

    The TH17 sanitary temperature sensors are RTD's designed for use in dairy, food & beverage, pharmaceutical and bio-technology plants.

    • Temperature dryers in food processes

    • Pasteurization

    • Heat exchangers

    • Material storage tanks

    • Cheese vats

    • Brewhouse / cellar

    • Cookers / freezers

    • Dehydrator

    • ...

Características e especificações

Voltar

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    modular temperature assembly

    hygienic design

    hygienic process connection

    with extension

  • Terminal head

    TA20J - SS - deep-drawn w. or w/o. display

    TMT162 - SS casting - fieldhousing w. or w/o. display

    TU401 - Alu - screwed cover w. chain

    PP plastic - screwed cover w. chain - FDA listed material

    TMT162/T17 - 316L - hygienic field housing

  • Thermowell / protection tube

    without (not intended to be used with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

    PTFE-insulated, rigid

  • Outer diameter protection tube

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • Max. immersion length on request

    up to 4.877 mm (192,00'')

  • Material protection tube/ thermowell

    1.4404 (316L)

  • Process connection

    hygienic:

    clamp connections TRI-Clamp / Micro-Clamp

  • Tip shape

    straight

    reduced

  • Surface roughness Ra

    0,8 μm (32 μin.)

  • Operating temperature range

    PT 100:

    -200 °C ... 200 °C

    (-328 °F ... 392 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class A acc. to IEC 60751

    class 1/5 DIN

  • Response time

    63% rt = 4 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    FM IS

    CSA IS

    FM/CSA IS

    CSA

  • Certification

    FDA

    3A

    SIL (transmitter only)

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
  • A
  • A
    • Nr A Order code TU401-

      Enclosure TU401, U.S.Style

    • Nr A Order code TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code TMT162E-

      Electronic TMT162

    • Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Lloyd) Marine.

    • Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Llyod) Marine.

    • Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Llyod) Marine.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

  • A
    • Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • Successor

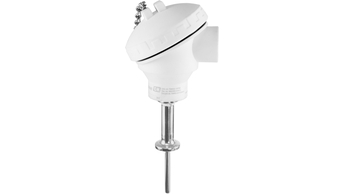

    • iTHERM® TM402

      Resistance thermometer for hygienic and aseptic applications. Imperial version with basic technology for all standard applications with a fixed, non-replaceable insert.

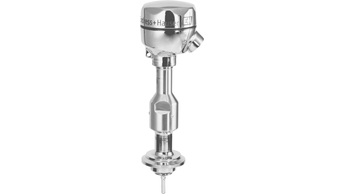

    • iTHERM TM412

      Innovative advanced, modular resistance thermometer for hygienic and aseptic applications - Imperial version with advanced sensor technology and very easy handling
