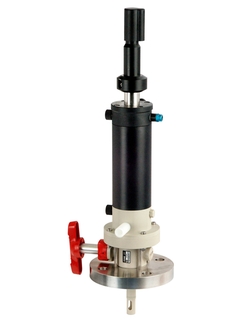

Manual or automatic retractable assembly Cleanfit CPA474

CPA474 retractable assembly is designed for harsh chemical applications. ©Endress+Hauser

Assembly with ball valve for chemical and industrial wastewater applications

The Cleanfit CPA474 retractable assembly is designed for applications which require safe separation from the process and contain media that could affect stainless steel. It offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.

  • Benefícios

    • Safe and reliable separation from the process by ball valve, even under harsh conditions

    • Suitable for corrosive media: Only polymers (PP, PVDF, PEEK) in contact with medium

    • No process interruption for electrode cleaning and calibration – saves maintenance...

  • Campo de aplicação

    Cleanfit CPA474 is intended for use in tanks and pipes in:

    • Chemical industry

    • Wastewater / industrial water

    • Power plants

    • Refuse incinerators

    It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).

Características e especificações

Voltar

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Retractable holder with ball valve.

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - manual or pneumatic- manual or preumatic ball valve- Can be fully automated with CPC30 / 300- Integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Holder : PP, PEEK, PVDFSealing : different materials available

  • Dimension

    Immersion deepth : 71 - 207mm

  • Process temperature

    max. 80 bzw. 130°C

  • Process pressure

    4/6 bzw. 10bar

  • Connection

    Flange DN50/PN16, flange ASME 2"/150lbs

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Retractable assembly with ball valve.

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - manual or pneumatic - manual or pneumatic ball valve - can be fully automated with CPC30 / 300 - integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Holder : PP, PEEK, PVDFSealing : different materials available

  • Dimension

    Immersion depth: 71 - 207 mm
    (2.76 inch - 8.07 inch)

  • Process temperature

    max. 80 or 130°C
    (176°F or 266°F)

  • Process pressure

    4/6 or 10 bar
    (58 psi/87 psi or 145 psi)

  • Connection

    Process connection DN50/PN16, process connection ASME 2"/150 lbs
