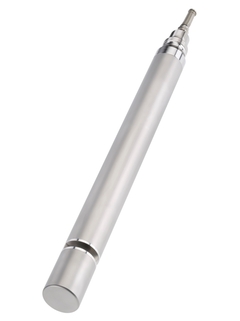

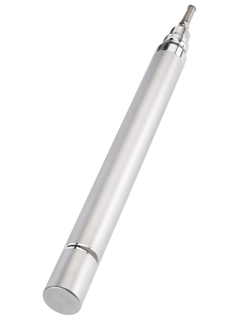

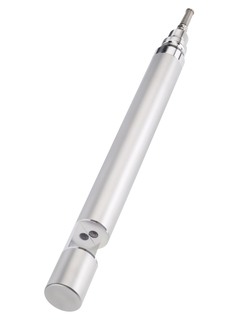

Digital nitrate or SAC sensor Viomax CAS51D

Memosens sensor for optical nitrate or SAC measurement in water, wastewater and utilities

Viomax CAS51D is a smart sensor that allows unattended operation in a wide range of process conditions. Just immerse it into your process and measure. The sensor's unique design is extremely robust and it is also low-maintenance thanks to its self-cleaning functionality. With Memosens digital technology, CAS51D combines maximum process and data integrity with simple operation. It enables lab calibration and simplifies predictive maintenance.

Adicionar ao carrinho
Configurar
Selecionar e dimensionar
Preço após o login e configuração

Comparar

Componentes adicionais

RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
Mais informações
Comparar
Memograph M RSG45
Advanced Data Manager

Salva, visualiza, analisa e comunica
Mais informações
Comparar
Ecograph T RSG35
Universal Graphic Data Manager

Paperless recording, visualization and monitoring of the process values at the same time
Mais informações
Comparar
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Mais informações
Comparar

Benefícios
Cost-effective: Easy, chemical-free handling is safe, environmentally friendly and saves on operational expenditure.
Extremely fast response time: Measured value processing in the sensor provides reliable real-time process information.
Fast and easy...

Mostrar mais
Cost-effective: Easy, chemical-free handling is safe, environmentally friendly and saves on operational expenditure.
Extremely fast response time: Measured value processing in the sensor provides reliable real-time process information.
Fast and easy commissioning: Sensor comes precalibrated and preconfigured ex factory.
Enables unattended plant operation: Intelligent design and automatic air-cleaning functionality maximize availability and minimize maintenance.
Perfect adaption to open basins: Fast and flexible sensor positioning with Flexdip CYH112 holder and CYA112 assembly system.
Perfect adaption to pipes: Various flow cells allow easy plant integration.

Mostrar menos

Campo de aplicação
Viomax CAS51D measures nitrate or SAC in drinking water, process water and wastewater applications as well as the utilities sector:

Organic load or nitrate in inlet and outlet

Determination of CODeq or TOCeq

Monitoring, control and optimization of...

Mostrar mais
Viomax CAS51D measures nitrate or SAC in drinking water, process water and wastewater applications as well as the utilities sector:

Organic load or nitrate in inlet and outlet

Determination of CODeq or TOCeq

Monitoring, control and optimization of treatment processes

Nitrate monitoring in the aeration basin and denitrification stage

Mostrar menos

Características e especificações

Voltar

Details

Measuring principle

UV photometric
Characteristic

Insitu (immersion in process), extractive with sample and flow cell
Optical photometric sensor for nitrate and SAC
Size

ca. 390 mm x 40 mm
Design

40 mm sensor, stainless steel
stainless steel 316L
Process temperature

5 ... 50°C / 41 -120°F
Ambient temperature

-20 ... 60°C / -4 - 140°F
Specials

G1, NPT3/4
IP68 (1m/3,3ft) water column with 1N KCl during 60d ays
Application

Drinking water, biological waste wate process, WWTP effluent
Monitoring of surface water
Measurement range

0.01 to 20 mg/l / 0.1 to 50 mg/l NO3-N

0.04 to 80 mg/l / 0.4 to 200 mg/l NO3

0.1 to 50 1/m / 0.5 to 250 1/m / 1.5 to 700 1/m SAC

0.15 to 75 mg/l / 0.75 to 370 mg/l / 2.5 to 1000 mg/l COD (254nm)

0.06 to 30 mg/l / 0.3 to 150 mg/l / 0.9 to 410 mg/l TOC (254nm)
