Digital pH sensor
Memosens CPS41E

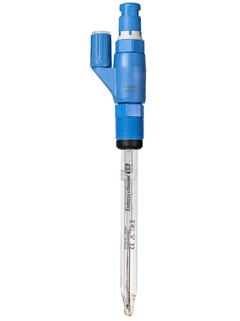

Memosens CPS41E - digital pH sensor with liquid KCl electrolyte ©Endress+Hauser

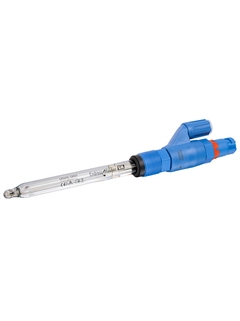

Memosens CPS41E - digital pH sensor with liquid KCl electrolyte, hazardous areas ©Endress+Hauser

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens 2.0 pH electrode for demanding applications in the chemical and process industries

Memosens CPS41E features a liquid KCl electrolyte and a ceramic junction making it extremely suitable for harsh chemical applications, fast-changing media and liquids with low conductivity or high organic content. Its integrated Memosens 2.0 digital technology enables extended data storage and lab calibration which results in easier operation and more process uptime and provides the perfect basis for predictive maintenance. The non-contact signal transmission ensures integrity of your process.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Measurement range

      Application A
      • pH: 1 to 12
      Application B
      • pH: 0 to 14

    • Process temperature

      Application A: –15 to 80 °C (5 to 176 °F)
      Application B: 0 to 135 °C (32 to 275 °F)

    • Process pressure

      0.8 to 11 bar (11.6 to 159.5 psi) absolute

please wait Loading alternative products

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Memosens 2.0 for perfect support of IIoT, digital transformation and predictive maintenance: It provides enhanced storage of calibration and process data, enabling better trend identification.

    • Suitable for harsh conditions: Continuous refilling of KCl...

  • Campo de aplicação

    Media with low conductivities or a high proportion of organic solvents or alcohols and fast changing media:

    • Chemical industry

    • Organic chemicals

    • Power plants, e.g. boiler feed water

    • Laboratory measurements

    With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO...

Características e especificações

Voltar

Details

  • Measuring principle

    Potentiometric

  • Application

    Media with very low conductivity or a high proportion of organic solvents or alcohol:

    • Chemical industry

    • Organic chemicals

    • Power stations

    • Laboratory measurements

  • Characteristic

    Digital pH electrode for process engineering with ceramic junction
    and KCl liquid electrolyte

  • Measurement range

    Application A

    • pH: 1 to 12

    Application B

    • pH: 0 to 14

  • Measuring principle

    Liquid-KCl compact electrode with ceramic junction

  • Design

    All shaft lengths with temperature sensor

  • Material

    Sensor shaft: Glass to suit process

    pH membrane glass: Type A and B

    Metal lead: Ag/AgCl

    Open aperture: Ceramic junction, zirconium dioxide

    O-ring: FKM

    Process coupling: PPS fiber-glass reinforced

    Nameplate: Ceramic metal oxide

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft length: 120, 225, 360 and 425 mm
    (4.72, 8.86, 14.17 and 16.73 inch)

  • Process temperature

    Application A: –15 to 80 °C (5 to 176 °F)

    Application B: 0 to 135 °C (32 to 275 °F)

  • Process pressure

    0.8 to 11 bar (11.6 to 159.5 psi) absolute

  • Temperature sensor

    NTC 30K

  • Ex certification

    With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
    hazardous areas Zone 0, Zone 1 and Zone 2.

  • Connection

    Inductive, digital connection head with Memosens 2.0 technology

  • Ingres protection

    IP68

  • Additional certifications

    Additional certifications

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
    • Order code 71038228

      Memoclip label Memosens sensor

      for assignment of sensors to measuring loop. 100 sensor clips with printable labels

    • Order code CPY20-

      Technical buffer solution CPY20

      pH quality buffer solution, referenced to primary reference material of PTB and standard reference material of NIST. in DAkkS accredited buffer Laboratory.

    • Order code CPY4-

      KCL-Electrolyte solution CPY4

      For liquid filled electrodes
