Liquiline Compact CM82 is the smallest transmitter for Memosens sensors

1-channel transmitter
Liquiline Compact CM82

Multiparameter field device for hazardous and non-hazardous applications in all industries

CM82
Carregando preços
Preço temporariamente indisponíveis
Price on request
ativando preços
preço: fornecer informações
from CHF ??.-
The Liquiline Compact CM82 allows you to operate measuring points via tablets and smartphones.
  • F
  • L
  • E
  • X
©Endress+Hauser

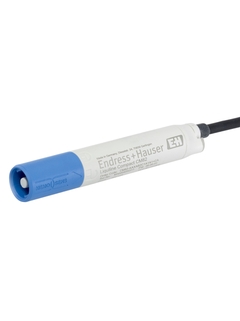

The Liquiline Compact CM82 is ideal for limited installation spaces and allows you to operate your measuring points via tablets and smartphones.

Using the SmartBlue app, you can operate all CM82 measuring points within the Bluetooth range.
  • F
  • L
  • E
  • X
©Endress+Hauser

Using the SmartBlue app, you can check, operate and configure all CM82 measuring points within the Bluetooth range of your iOS or Android device.

The Liquiline Compact CM82 transmitter is suitable for pH, ORP, conductivity, and oxygen sensors.
  • F
  • L
  • E
  • X
©Endress+Hauser

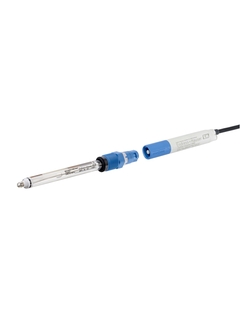

The compact field device is the smallest transmitter for pH, ORP, conductivity and oxygen Memosens sensors.

Thanks to contactless data transmission, the measured value is not affected by humidity, dust, etc.
  • F
  • L
  • E
  • X
©Endress+Hauser

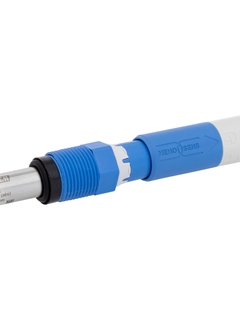

Connect your sensor directly - without a cable - to the transmitter. Thanks to contactless data transmission, the measured value is not affected by humidity, dust, etc.

A red/green LED indicates the status of the transmitter and the connected sensor.
  • F
  • L
  • E
  • X
©Endress+Hauser

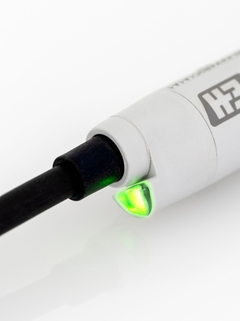

A red/green LED indicates the status of the transmitter and the connected sensor.

With the RIA15 you can display the measured value and make some basic settings on-site.
  • F
  • L
  • E
  • X
©Endress+Hauser

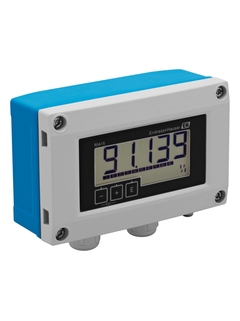

With the optional RIA15 you can display the measured value and make some basic settings on-site.

The Liquiline Compact CM82 is ideal for limited installation spaces and allows you to operate your measuring points via tablets and smartphones.

Especificações resumidas

  • Input

    One channel transmitter

  • Output / communication

    4 to 20 mA, HART

  • Ingres protection

    IP67, IP68, NEMA Type 6

Campo de aplicação

The Liquiline Compact CM82 is the smallest transmitter for Memosens sensors. Its slender housing measures only 11 cm long and 2 cm wide, including a connection to which you can attach your sensor directly, without a cable. Together with the sensor, it fits into most assemblies and couldn’t be easier to install. Via a uniquely secure Bluetooth connection, you can see all nearby CM82 measuring points on your tablets or smartphones and operate them conveniently from a distance.

Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:

  • pH sensors

  • ORP sensors

  • Conductivity sensors

  • Oxygen sensors

The loop-powered two-wire transmitter features the following protocols and interfaces:

  • 4...20 mA

  • HART

  • Bluetooth

With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use.

Benefícios

  • Easy operation:
    Use your existing tablets and smartphones for operation and commissioning.

  • Fast and reliable:
    A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance.

  • Benefit from all the advantages of Memosens technology:
    Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use.

  • Space-saving installation:
    The two-wire device fits inside an assembly and does not require its own power supply.

  • Suitable for all locations:
    Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM82 will always be exactly the right transmitter for you.
