Digital pH sensor
Ceraliquid CPS41D

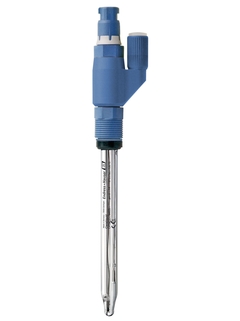

Ceraliquid CPS41D - Memosens pH sensor with refillable liquid KCl electrolyte ©Endress+Hauser

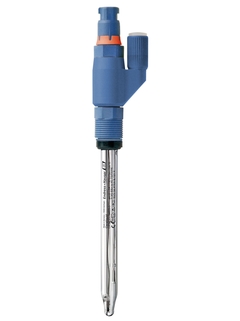

Ceraliquid CPS41D - Version for hazardous areas ©Endress+Hauser

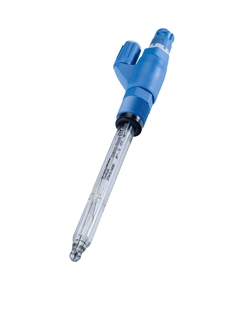

Ceraliquid CPS41D for harsh chemical applications ©Endress+Hauser

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens glass electrode for the chemical and life sciences industries

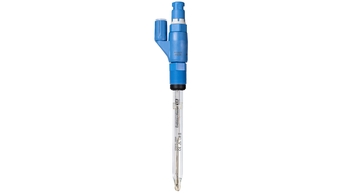

Ceraliquid CPS41D is the digital high performer for harsh chemical applications, media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing you high process safety even in applications with fast-changing media. Ceraliquid CPS41D is not the latest Memosens generation. To get information on the new Memosens CPS41E sensor with extended functionality, click here.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Measurement range

      pH 0 to 14

    • Process temperature

      0 to 135 °C (32 to 275 °F)

    • Process pressure

      1 to 11 bar abs (15 to 160 psi)

please wait Loading alternative products

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead

    • Applicable at very low conductivities (= 0.1 µS/cm) thanks to liquid KCl electrolyte

    • Suitable for cleaning in place (CIP) and sterilization in place (SIP)

    • Perfectly suited for quickly changing media: Combination of liquid...

  • Campo de aplicação

    Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:

    • Chemical industry

    • Power plants, e.g. boiler feed water

    • Life sciences, e.g. water for injection

    With ATEX, FM and CSA approval for use in...

Características e especificações

Voltar

Details

  • Measuring principle

    Potentiometric

  • Application

    Chemical industry, organic chemicals, power stations, food industry, laboratory measurements

  • Characteristic

    Analog or digital pH electrodes for process engineering with ceramic diaphragm
    and KCl liquid electrolyte

  • Measurement range

    pH 0 to 14

  • Measuring principle

    Liquid-KCl with ceramic diaphragm

  • Design

    All shaft lengths with temperature sensor
    Digital electrode with Memosens technology

  • Material

    Glass and ceramic

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft length: 120, 225, 360 and 425 mm
    (4.72, 8.86, 14.17 and 16.73 inch)

  • Process temperature

    0 to 135 °C (32 to 275 °F)

  • Process pressure

    1 to 11 bar abs (15 to 160 psi)

  • Temperature sensor

    NTC30k

  • Ex certification

    ATEX, FM, CSA

  • Connection

    Contactless, inductive, digital connection head with Memosens technology

  • Ingres protection

    IP68

  • Additional certifications

    3A, EHEDG

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
    • Order code 71038228

      Memoclip label Memosens sensor

      for assignment of sensors to measuring loop. 100 sensor clips with printable labels

    • Order code CPY20-

      Technical buffer solution CPY20

      pH quality buffer solution, referenced to primary reference material of PTB and standard reference material of NIST. in DAkkS accredited buffer Laboratory.

    • Order code CPY4-

      KCL-Electrolyte solution CPY4

      For liquid filled electrodes
