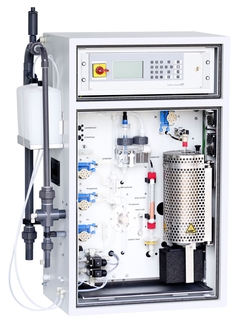

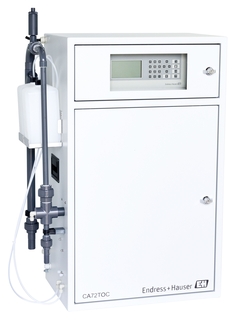

High temperature TOC analyzer CA72TOC

High temperature TOC analyzer CA72TOC ©Endress+Hauser
High temperature TOC analyzer CA72TOC ©Endress+Hauser
  • High temperature TOC analyzer CA72TOC
  • High temperature TOC analyzer CA72TOC

Reliable online monitoring of industrial wastewater

CA72TOC determines the total organic carbon (TOC) content in a number of industries. It measures reliably and accurately even in heavy duty applications with high loads of salt, fat or fibers. The reliable detection of product losses increases the process yield and saves money every day. Designed for long-term stability and highest availability, the CA72TOC offers maximum operational safety of your plant. Clear diagnostic messages actively support your predictive maintenance strategy.

Seleção rápida

Escolha uma das opções sugeridas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CA72TOC
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

Componentes adicionais

  • Benefícios

    • Process optimization: Constant safeguard against product losses.

    • Cost savings: 2-channel version offers an excellent price-performance ratio.

    • Reliable discharge monitoring: Configuration for fat and grease, low pH values and organic acids.

    • Improved...

  • Campo de aplicação

    CA72TOC monitors and controls:

    • Industrial discharge

    • Inlets of wastewater treatment plants

    • Outlets of wastewater treatment plants

    • Process water

    • Surface run-off

Características e especificações

Voltar

Details

  • Measuring principle

    UV photometric

  • Characteristic

    Analyzer for online-determination of TOC in aqueous media using thermic catalytic combustion

  • Size

    1558 x 785 x 400 mm
    61.3 x 30.9 x 15.8 inch

  • Design

    IP54

  • Process temperature

    0 to 40 °C (32 to 104 °F)

  • Ambient temperature

    5 to 35 °C (41 to 95 °F)

  • Process pressure

    Pressure free

  • Sample flow rate

    20 ml/min (0.32 US gal/hr)

  • Consistency of the sample

    Aqueous
    Flammable substances are not allowed in ignitable concentrations, in such cases a sample dilution is required

  • Specials

    Heatable Salt Trap
    Exchange furnace concept
    pH-controlled acid dosage with TIC stripping

  • Application

    Industrial wastewater monitoring
    Control of process wastewater
    Monitoring of industrial surface water
    Recording of the carbon load to control the nutrient dosage

  • Power supply

    115 VAC, 230 VAC, 50/60Hz

  • Output

    0/4 to 20 mA, galvanically separated
    Two channel version has an addtional one
    RS 232 C, propietary, for data output and remote control (optional)

  • Input

    8 signal inputs 24 V DC, ative, load max. 500 Ohm

  • Measurement range

    0.25 to 600 mg TOC/l
    1 to 2400 mg TOC/l
    2.5 to 6000 mg TOC/l
    5 to 12000 mg TOC/l
    With the optional pre-dilution the measuring range will expand by the factor of 20

  • Consumables

    Stripp reagent, KHP or citric acid standard
