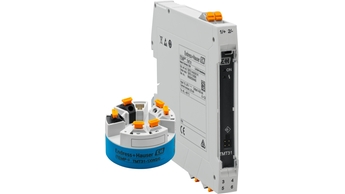

Temperature head transmitter
Transformation of the sensor signal into a stable and standardized output signal for all industries
The transmitter is designed for the transformation of an RTD Pt100 sensor signal. Various measurement ranges are configurable. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means a fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of non-ex industry applications.
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit, presettable to NAMUR NE 43
EMC according to NAMUR NE 21, CE
Online configuration during measurement using SETUP connector
Customer specific measurement range...
Campo de aplicação
PC programmable (PCP) temperature head transmitter for converting a Pt100 input signal into a scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD) Pt100
Online configuration using PC with configuration kit and PC software
Documentos / Manuais / Software
Acessórios / peças sobressalentes
The unit is not repairable
Order code 51000856
DIN rail clip
according to IEC 60715 for temperature head transmitters.
Order code 51001112
Spare part set for TMT181/187/188/182
(4 screws, 6 springs, 10 spring rings)
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
Order code READWIN-
Readwin 2000 Operation + Read. software
Order code TAF10-
Field housing TAF10
Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.
