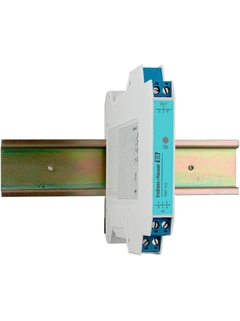

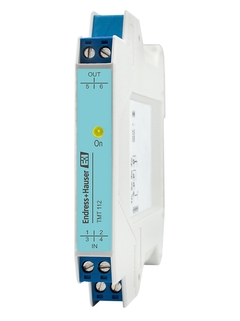

DIN rail temperature transmitter
Transformation of sensor signals into stable and standardized output signals for all industries.
Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals using HART® communication. Swift and easy operation, visualization and maintenance by PC using operating software. Space-saving DIN rail mounting according to IEC 60715 (housing width: 12.6 mm).
Universal settings with HART®-protocol
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
EMC to NAMUR NE 21, CE
Ex-Certification: ATEX Ex, CSA IS, FM IS
Campo de aplicação
Temperature transmitter with HART® -Protocol for converting various input signals into a scalable 4 to 20 mA analog output signal
Resistance thermometer (RTD)
Resistance transmitter (Ω)
Voltage transmitter (mV)
HART® -Protocol for front end unit or panel unit operation using the hand operating module (DXR275, DXR375) or a PC (e.g. ReadWin 2000 or FieldCare)
Installation on DIN rail according to IEC 60715
