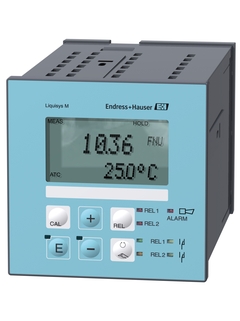

Liquisys M CUM223

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Single beam scattered light

  • Application

    Water, waste water, Drinking water, process

  • Characteristic

    4-wire transmitter with a two-line display

  • Design

    Turbidity-transmitter in a panel housing and easy calibration with the "CAL"-button.

  • Material

    Panel housing

  • Dimension

    96mm x 96mm x 146mm(built in depth)
    3.74x3.74x5.61inch( built in depth)

  • Temperature sensor

    Display and current output

  • Ex certification

    No

  • Ingres protection

    IP65

  • Input

    1-channel version

  • Output

    0/4-20mA, Hart, Profibus.

  • Additional certifications

    CSA Gen. Purpose
