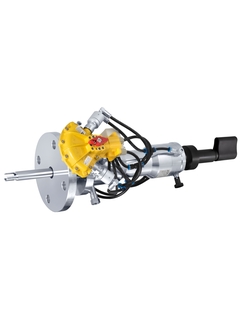

Manual or automatic retractable assembly Cleanfit CPA473

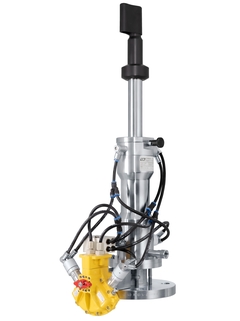

Cleanfit CPA473 - Service position ©Endress+Hauser
Cleanfit CPA473 - Retractable holder for fibrous and sticky media ©Endress+Hauser

Assembly with ball valve for the chemical, paper, and wastewater industries

The Cleanfit CPA473 retractable assembly is designed for application in fibrous or sticky media. Its patented sleeve seals and integrated scrapers make sure that nothing sticks to the sensor. Cleanfit offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Process temperature

      PA pressure cylinder (manually only):
      Max. 80 °C (176 °F)
      Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)

    • Process pressure

      PA pressure cylinder: Max. 6 bar (87 psi)
      Stainless steel pressure cylinder: Max. 10 bar (145 psi)
      Pneumatic outlet safety seal:
      6 bar at 100 °C (87 psi at 212 °F)

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Safe and reliable separation from the process by ball valve, even under harsh conditions

    • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

    • Extended operating life of electrodes due to automatic cleaning

    • ...

  • Campo de aplicação

    Cleanfit CPA473 is intended for use in tanks and pipes in:

    • Chemical industry

    • Paper industry

    • Wastewater / industrial water

    • Power plants

    • Refuse incinerators

    It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA...

Características e especificações

Voltar

Details

  • Measuring principle

    Potentiometric

  • Application

    Chemical industry, paper industry, wastewater, industrial water, power plants, refuse incinerators, sugar industry

  • Installation

    Retractable assembly with ball valve

  • Characteristic

    Open and closed tank, piping (min DN80)

  • Design

    Manual or pneumatical
    Manual or pneumatical ball valve
    Can be fully automated with CPC30 / 300
    Integrated rinse chamber with connection G 1/4" or NPT 1/4"

  • Material

    Seals: EPDM / FPM / perfluoroelastomer
    Electrode holder: stainless steel 1.4404
    Ball valve: Stainless steel 1.4401, PTFE
    Inlet safety seal: PVDF, PTFE, Viton®
    Outlet safety seal: PVDF, Stainless steel 1.4404
    Rinse connection socket: Stainless steel 1.4404

  • Dimension

    Immersion depth: 61 to 235mm
    (2.4 inch to 9.25 inch)

  • Process temperature

    PA pressure cylinder (manually only):
    Max. 80 °C (176 °F)
    Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)

  • Process pressure

    PA pressure cylinder: Max. 6 bar (87 psi)
    Stainless steel pressure cylinder: Max. 10 bar (145 psi)
    Pneumatic outlet safety seal:
    6 bar at 100 °C (87 psi at 212 °F)

  • Connection

    G1¼ internal thread, DN50, DN65, ANSI 2"

  • Additional certifications

    3.1. acc. to EN 10204

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Chemical industry, paper industry, wastewater, industrial water, power plants, refuse incinerators, sugar industry

  • Installation

    Retractable holder with ball valve

  • Characteristic

    Open and closed tank, piping (min DN80)

  • Design

    Manual or pneumatical
    Manual or pneumatical ball valve
    Can be fully automated with CPC30 / 300
    Integrated rinse chamber with connection G 1/4" or NPT 1/4"

  • Material

    Seals: EPDM / FPM / perfluoroelastomer
    Electrode holder: stainless steel 1.4404
    Ball valve: Stainless steel 1.4401, PTFE
    Inlet safety seal: PVDF, PTFE, Viton®
    Outlet safety seal: PVDF, Stainless steel 1.4404
    Rinse connection socket: Stainless steel 1.4404

  • Dimension

    Immersion depth: 61 to 235mm
    (2.4 inch to 9.25 inch)

  • Process temperature

    PA pressure cylinder (manually only):
    Max. 80 °C (176 °F)
    Stainless steel pressure cylinder:
    up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)

  • Process pressure

    PA pressure cylinder: Max. 6 bar (87 psi)
    Stainless steel pressure cylinder: Max. 10 bar (145 psi)
    Pneumatic outlet safety seal:
    6 bar at 100 °C (87 psi at 212 °F)

  • Connection

    G1¼ internal thread, DN50, DN65, ANSI 2"

  • Additional certifications

    3.1.B EN 10204
