Conductivity compact device

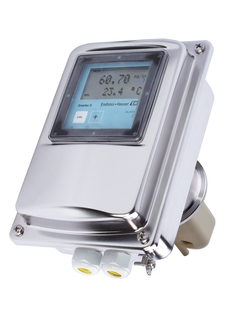

Smartec CLD134

Conductivity compact device

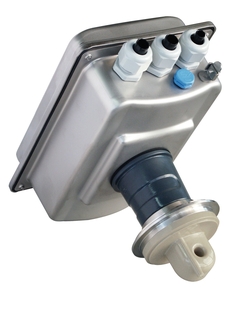

Smartec CLD134 ©Endress+Hauser
Conductivity compact device
Smartec CLD134 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Toroidal conductivity measuring system for hygienic and sterile applications

Smartec CLD134 is a measuring system for inductive conductivity in the food & beverage and life sciences industries. The combination of a transmitter and a sensor is interference-free and especially easy-to-use. It meets the highest hygienic and sterile demands thanks to its food-grade virgin PEEK body, its jointless and creviceless design and its hygienic certificates. Smartec CLD134 is therefore the ideal package to ensure the highest safety and quality of your products and processes.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Measurement range

      100 µS/cm to 2000 mS/cm
      Cell constant k : 6.3 1/cm

    • Process temperature

      Max. 125 °C (max. 257 °F)
      For sterilization: up to 150 °C for max. 60 min
      (up to 302 °F for max. 60 min)

    • Process pressure

      12 bar abs up to 90 °C
      (174 psi abs up to 194 °F)

please wait Loading alternative products

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Unique hygienic design avoids recontamination

    • With all hygienic certificates required in hygienic and sterile applications

    • Certified biocompatibility according to USP class VI

    • Compliant with EG 2023/2006 and 1935/2004

    • Suitable for cleaning-in-place (CIP)...

  • Campo de aplicação

    The hygienic Smartec CLD134 measures toroidal conductivity in food & beverage and life science applications:

    • Phase separation of product/water and product/product mixtures in pipe systems

    • Control of CIP processes in the return channel

    • Concentration...

Características e especificações

Voltar

Details

  • Measuring principle

    Inductive

  • Application

    Food, beverage, dairies, breweries and pharmaceutical industries, biotechnology

  • Characteristic

    Specifically intended for use in hygienic applications and especially suitable for following applications:
    Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring

  • Measurement range

    100 µS/cm to 2000 mS/cm
    Cell constant k : 6.3 1/cm

  • Measuring principle

    Inductive conductivity measurement

  • Design

    Hygienic design with FDA certified virgin PEEK body including all hygienic certifications

  • Material

    In contact with medium: Virgin PEEK

  • Process temperature

    Max. 125 °C (max. 257 °F)

    For sterilization: up to 150 °C for max. 60 min

    (up to 302 °F for max. 60 min)

  • Process pressure

    12 bar abs up to 90 °C
    (174 psi abs up to 194 °F)

  • Temperature sensor

    Pt 1000

  • Connection

    Dairy pipe, aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50

  • Ingres protection

    IP67

  • Output / communication

    Conductivity, concentration and temperature. 0/4 to 20 mA, HART, Profibus

  • Additional certifications

    FDA, EHEDG, 3A
    Biological reactivity USP class VI part <87> and <88>
    EC Regulation No. 1935/2004
