Analog chlorine dioxide sensor CCS50

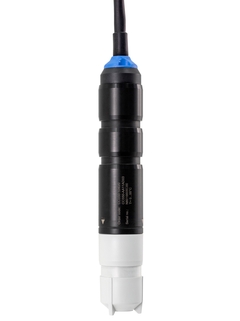

CCS50: Analog chlorine dioxide sensor ©Endress+Hauser

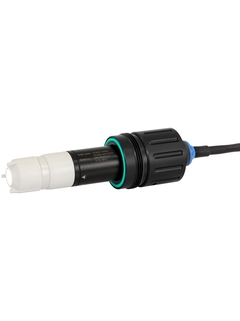

CCS50 analog chlorine dioxide sensor with adapter for installation in CCA250 flow assembly ©Endress+Hauser
  • CCS50: Analog chlorine dioxide sensor
  • CCS50 analog chlorine dioxide sensor with adapter for installation in CCA250 flow assembly

Sensor for water, process water and utilities in all industries

CCS50 is a robust, low-maintenance sensor for chlorine dioxide measurement. It provides stable and fast measured values in water, process water and utilities. The sensor ensures efficient disinfection even at minimum water volumes and helps to achieve highest water quality and safety, to avoid overdosing of chlorine dioxide or to ensure the absence of ClO2 in beverage plants and reverse osmosis. CCS50 ensures continuity for the installed base of analog chlorine dioxide measuring points.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Measurement range

      Trace: 0 to 5 mg/l ClO2
      Standard: 0 to 20 mg/l ClO2

    • Process temperature

      0 to 55 °C (32 to 130°F), non-freezing

    • Process pressure

      Max.1 bar (max. 14.5 psi)

    • Measuring method

      Closed, membrane covered measuring cell
      Reduction of chlordioxide at the cathode

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CCS50
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
Carregando preços
Preço temporariamente indisponíveis
from CHF 803.-
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

Componentes adicionais

  • Liquisys CCM253 is a compact field transmitter for chlorine and chlorine dioxide measurement. Liquisys CCM253 is a compact field transmitter for chlorine and chlorine dioxide measurement.

    Disinfection transmitter
    Liquisys CCM253

    Compact field device for the water, wastewater, food and power industries

    Carregando preços
    Preço temporariamente indisponíveis
    from CHF 803.-
  • Liquisys CCM223 is a compact panel transmitter for chlorine, chlorine dioxide and pH measurement. Liquisys CCM223 is a compact panel transmitter for chlorine, chlorine dioxide and pH measurement.

    Disinfection transmitter
    Liquisys CCM223

    Compact panel device for the water, wastewater, food and power industries

    Carregando preços
    Preço temporariamente indisponíveis
    from CHF 803.-
  • COY8 is an oxygen-free gel for validation, calibration and adjustment of oxygen and chlorine sensors COY8 is an oxygen-free gel for validation, calibration and adjustment of oxygen and chlorine sensors

    Zero-point gel
    COY8

    Ready-to-use gel for validation, calibration, and adjustment of oxygen and disinfection sensors

    Carregando preços
    Preço temporariamente indisponíveis
    from CHF 803.-

  • Benefícios

    • Fast response time (t90 < 15 s) provides an accurate process view and enables prompt reaction to process changes as well as efficient process control.

    • Increased process safety: precise and long-term stable measurement ensures consistent process...

  • Campo de aplicação

    CCS50 is an analog chlorine dioxide sensor for skid builders and end customers. It measures reliably in:

    • Drinking water - to ensure sufficient disinfection

    • Cooling systems or towers - to avoid pathogen growth

    • Wash water for packed vegetables and salads...

Características e especificações

Voltar

Details

  • Measuring principle

    Chlorine dioxide

  • Application

    Guarantees reliable disinfection in drinking water
    Prevents the growth of biofilms and pathogens in cooling water
    Ensures food quality
    Ensures the absence or presence of chlorine dioxide in Utilities

  • Characteristic

    Amperometric measurement of dissolved chlorine dioxide

  • Measurement range

    Trace: 0 to 5 mg/l ClO2
    Standard: 0 to 20 mg/l ClO2

  • Measuring method

    Closed, membrane covered measuring cell
    Reduction of chlordioxide at the cathode

  • Design

    Closed amperometric 2-electrode measuring cell with PVDF membrane

  • Material

    Sensor shaft: POM
    Membrane: PVDF
    Membrane cap: PVDF
    Sealing ring: FKM

  • Dimension

    Diameter: 25 mm (0.98 inch)
    Length: 126 mm (4.96 inch)

  • Process temperature

    0 to 55 °C (32 to 130°F), non-freezing

  • Process pressure

    Max.1 bar (max. 14.5 psi)

  • Temperature sensor

    10k NTC

  • Connection

    Analog with fixed cable

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
  • 2
    • Order code COY8-

      Zero-point gel COY8

      Zero point: Verification, calibration, adjustment at zero point of oxygen and disinfection sensors ::Amperometric and optical sensors ::12, 25 and 40mm diameter ::Application in the lab, in the field
