Float Gauge LT12

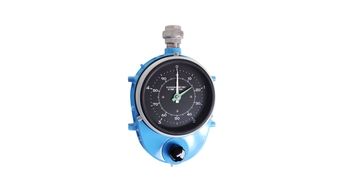

Imagem de produto: Float Gauge LT12

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Servo / Float Tank Gauging

  • Characteristic / Application

    Mechanical tank gauge for accurate and reliable level measurement.

    Flange version

  • Specialities

    Mechanical display

  • Accuracy

    ±2mm (+/- 0.08")

  • Ambient temperature

    -20 °C ... 70 °C

    (-4 °F ... 158 °F)

  • Process temperature

    -200 °C ... 200 °C

    (-328 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    1 bar abs ...1.2 bar

    (15 psi ... 17 psi)

  • Main wetted parts

    AC4A

  • Process connection

    Flange

  • Max. measurement distance

    30 m (98 ft)

  • Options

    Transmitter

  • Application limits

    Measuring liquid density: 0.5 - 2.0 g/cm3

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
  • 82
  • 92
    • Nr 92 Order code 017860-5501

      Measuring wire, 316, 5m

      1.6mm,strand, 9m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5502

      Measuring wire, 316, 10m

      1.6mm,strand,14m,with wire,0.5mm,316,1m.

    • Nr 92 Order code 017860-5503

      Measuring wire, 316, 16m

      1.6mm,strand,20m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5504

      Measuring wire, 316, 20m

      1.6mm,strand,24m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5505

      Measuring wire, 316, 30m

      1.6mm,strand,34m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5506

      Measuring wire, PFA coated, 5m

      2.6mm, 316, strand, PFA, coated, 9m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5507

      Measuring wire, PFA coated, 10m

      2.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5508

      Measuring wire, PFA coated, 16m

      2.6mm, 316, strand, PFA, coated, 20m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5509

      Measuring wire, PFA coated, 20m

      2.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5510

      Measuring wire, PFA coated, 30m

      2.6mm, 316, strand, PFA, coated, 34m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 56004310

      Wire D1.6 PFA coated, 60m

      2.6mm, 316, strand, PFA, coated, 64m. Usage: LT1122/LT1222.

    • Nr 92 Order code 017860-5430

      Tape clamp

      Plate, 13x60x0.2t, 316, M3-8 screw, nut. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.

    • Nr 92 Order code 017860-5432

      Wire connector, triangle

      Connector tape/wire. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1212/LT1222.

    • Nr 92 Order code 017860-5431

      Tape connector, square

      Connector tape/tape. Usage: LT11/LT12/LT14/LT16, LT1122/LT1222.

  • 93
    • Nr 93 Order code 017860-5516

      Guide wire, strand, SUS316, 14m

      3mm,316,strand,14m,with,wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5517

      Guide wire, strand, SUS316, 24m

      3mm,316,strand,24m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5518

      Guide wire, strand, SUS316, 36m

      3mm,316,strand,36m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5519

      Guide wire, strand, SUS316, 44m

      3mm,316,strand,44m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5520

      Guide wire, strand, SUS316, 64m

      3mm,316,strand,64m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 56004312

      Guide wire, strand, SUS316, 124m

      3mm,316,strand,124m with wire,0.5mm, 1m. Usage: LT1122/LT1222.

    • Nr 93 Order code 017860-5464

      Guide wire, strand, PFA coated, 14m

      4.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-0047

      Guide wire, strand, PFA coated, 24m

      4.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0048

      Guide wire, strand, PFA coated, 36m

      4.6mm, 316, strand, PFA, coated, 36m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0049

      Guide wire, strand, PFA coated, 44m

      4.6mm, 316, strand, PFA, coated, 44m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0050

      Guide wire, strand, PFA coated, 64m

      4.6mm, 316, strand, PFA, coated, 64m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 56004314

      Guide wire, strand, PFE coated, 124m

      4.6mm,316,strand,PFA,coated,124m. Usage: LT1122/LT1222.

    • Nr 93 Order code 017860-5521

      Guide wire, solid, SUS316, 7m x 2

      D=3mm, 316, Solid, L=14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5522

      Guide wire, solid, SUS316, 12m x 2

      D=3mm, 316, Solid, L=24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5523

      Guide wire, solid, SUS316, 18m x 2

      D=3mm, 316, Solid, L=36m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5524

      Guide wire, solid, SUS316, 22m x 2

      D=3mm, 316, Solid,L=44m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5525

      Guide wire, solid, SUS316, 32m x 2

      D=3mm, 316, Solid, L=64m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

  • 94
    • Nr 94 Order code 017860-5441

      Anchor hook SS400, bolt, nut SUS316

      2x L-type anchor SS400, bolt M10-25 nut, spring washer, washer SUS316. Usage: LT5 LP/LT11/LT12.

    • Nr 94 Order code 017860-5442

      Anchor hook SUS316, bolt, nut SUS316

      2x L-type anchor SUS316, bolt M10-25, nut, spring washer, washer SUS316. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 94 Order code 52016951

      Anchor hook SUS316, bolt, nut PVC

      2x L-type anchor SUS316, bolt, nut PVC. Usage: LT5-1, LT11/LT12.

    • Nr 94 Order code 52016949

      Anchor hook SS400, bolt, nut PVC

      2x L-type anchor SS400, bolt, nut PVC. Usage: LT5-1, LT11/LT12.

  • 96
    • Nr 96 Order code 52017103

      Seal pot SGP/AC4A, Rp 1-1/2"

      Material: tank side, gauge side steel. Elbow material: AC4A. Connection: thread, PS 1-1/2".

    • Nr 96 Order code 52017110

      Seal pot 316/316, Rp 1-1/2"

      Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: thread, PS 1-1/2".

    • Nr 96 Order code 52017104

      Seal pot SGP/AC4A, JIS 10K 40A RF

      Material: tank side steel, gauge side steel. With paraffin oil 2 litre. Elbow material: aluminum casting, 4A. Connection: flange JIS 10K 40A RF.

    • Nr 96 Order code 52017111

      Seal pot 316/316, JIS 10K 40A RF

      Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: flange JIS 10K 40A RF.

    • Nr 96 Order code 52017100

      Seal pot PVC/PVC, JIS 10K 40A FF

      Material: tank side PVC, gauge side PVC, with paraffin oil 2 litre Elbow material: PVC. Connection: flange JIS 10K 40A FF.

    • Nr 96 Order code 56004354

      Cover elbow Alu, packing, plug

      Cover, aluminium, with drain plug, paking, cork. Usage: LT5.

    • Nr 96 Order code 017860-0720

      Oil gauge KL60

      Usage: LT5, LT16, LT36.

    • Nr 96 Order code 017860-5452

      Seal liquid, parafin, 2 liter

      Usage: LT5, LT11/LT12.

  • 99
    • Nr 99 Order code 017860-0045

      Pipe support, steel

      Angle, 50x50x4t, 320mm. Usage: LT11/LT12/14/16, LT1112/LT1122/1212/LT1222.

    • Nr 99 Order code 017860-0046

      U-bolts for pipe support, iron

      U-bolt, 1-1/2", nut, washer. Usage: LT11/LT12/14/16, LT1112/LT1122/1212/LT1222.

    • Nr 99 Order code 017860-5420

      Gauge bracket, steel

      Mounting, W32xH300xD90x4.5t. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.

    • Nr 99 Order code 017860-0721

      Wire guide socket, FRT instal. Rc 1-1/2

      Installed at top pipe end. Usage: LT5, LT11/LT12.

  • 82
  • 84
    • Nr 84 Order code 017860-0025

      T-anchor ASME 1-1/2" Cl.150 RF alumi, LP

      Complete set, Threaded flange, case ADC. Internal part, SUS316. Usage: LT5 LP flange connection, LT12.

    • Nr 84 Order code 017860-0026

      T-anchor ASME 1-1/2" Cl.150 RF SUS316,LP

      Complete set, welded flange, all 316. Usage: LT5 LP flange connection, LT12.

  • 88
  • 82
    • Nr 82 Order code 017860-0709

      O-ring, bearing, P8, silicon rubber, LP

      Size: D8mm, d1.9mm. Material: silicon. Usage: Roller, elbow, balancer, LT5, LT11/LT12, LT31/LT32.

  • 86
  • 88
    • Nr 88 Order code 017860-1259

      SUS316 bearing, with o-ring 2 piece, LP

      Bering stainless steel 316, guide elbow d4mm, o-ring silicon, rubber P8. 1 set (2 pieces). Usage: LT5, LT11/LT12, LT31/LT32.

  • 90
  • 91
  • 92
    • Nr 92 Order code 56004412

      Measuring tape, CRT 5m (total L 13m)

      L=13m,hole part=7m,Tape end=no clasp. With Clasp, M3 screw, M3 nut. Usage: LT5, LT1112/LT1122/LT1212/ LT1212/LT1222.

    • Nr 92 Order code 017860-5302

      Measuring tape, CRT 10m/BT 5m (L 24m)

      L=24m, hole part=12m, tape end=no clasp. With clasp, M3 screw,M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 92 Order code 017860-5304

      Measuring tape, CRT 20m/BT 16m (L 45m)

      L=45m, hole part=22m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 92 Order code 017860-5305

      Measuring tape, CRT 30m/BT 20m (L 65m)

      L=65m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Verwendung: LT5, LT11/LT12/LT14/LT16.

    • Nr 92 Order code 017860-5210

      Measuring tape, BT 30m (total L 75m)

      L=75m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 92 Order code 017860-5306

      Measuring tape, FRT 5m (L 7m), tape only

      L=7m, hole part=7m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0005

      Measuring tape FRT 5m (L 7m) + wire 9m

      L=7m,hole part=7m,with wire=1.6mm,9m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0006

      Meas. tape FRT 5m(L7m)+PFA coat wire 11m

      L=7m,hole=7m,with wire=1.6mm,9m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-5307

      Measuring tape, FRT 10m(L12m), tape only

      L=12m, hole part=12m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0007

      Meas. tape FRT 10m(total L 12m)+wire 14m

      L=12m,hole part=12m,with wire,1.6mm,14m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0008

      Meas. tape FRT 10m(L12m)+PFAcoatwire 16m

      L=12m,hole=12m,with wire,1.6mm,14m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-5309

      Measuring tape, FRT 20m(L 22m),tape only

      L=22m, hole part=22m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0011

      Meas. tape FRT 20m (L 22m)+ wire 24m

      L=22m,hole part=22m,with wire,1.6mm,24m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0012

      Meas. tape FRT 20m(L22m)+PFAcoatwire 26m

      L=22m,hole=22m,with wire,1.6mm,24m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-5310

      Measuring tape, FRT 30m(L 32m),tape only

      L=32m, hole part=32m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0013

      Meas. tape FRT 30m(total L 32m)+wire 34m

      L=32m,hole part=32m,with wire,1.6mm,34m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0014

      Meas. tape FRT 30m,1.6mm 316 PTFE coated

      L=32m,hole=32m,with wire,1.6mm,34m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 92 Order code 017860-0210

      Universal joint

      Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

    • Nr 92 Order code 017860-0211

      Triangle joint

      Verwendung: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

  • 81
    • Nr 81 Order code 017860-5221

      Front cover LT11/LT12, steel/glass

      Steel front cover with glass window. Seal U shape, 3 bolts. Usage: LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.

    • Nr 81 Order code 017860-5220

      Front cover counter LT11/LT12/LT14/LT16

      Usage: LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.

    • Nr 81 Order code 017860-5450

      Front cover, plastic

      Transparency plastic cover. Verwendung: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.

    • Nr 81 Order code 56004288

      Blind cover set, for rear cover

      D95x t1.5mm, bolt M10x16, washer packing. Material: SUS304. Usage: LT series.

  • 82
  • 83
  • 84
  • 85
  • 86
    • Nr 86 Order code 017860-0106

      Conster drum large, plastic,LT5LP, 11/12

      Drum, Bakelite, with bolt, M6-16. Screw, M4x12, Nut, M4. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

  • 87
    • Nr 87 Order code 017860-0107

      Conster drum small, metal, 20m

      Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

    • Nr 87 Order code 017860-0108

      Conster drum small, metal, 30m

      Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16.

  • 88
  • 89
  • 90
    • Nr 90 Order code 56004503

      Tape guide, SUS spring type, standard

      With screw, washer. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212/LT1222.

    • Nr 90 Order code 56004502

      Tape guide, aluminium type

      With screw, washer. Usage: LT5, LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.

  • 91
  • 92
  • 93
  • 95
  • 97
  • 98
  • Successor
