Transmitter FTC625

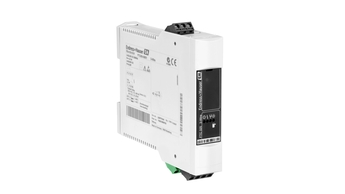

Imagem de produto: Transmitter FTC625

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Capacitive Solid

  • Characteristic / Application

    Transmitter with intrinsically safe signal
    Calibration using operating keys
    Permanent self monitoring, setting via push-buttons
    adjustable operating delay
    2-wire PFM
    RS232, RS485 interface
    Rail mounting: 45mm

  • Specialities

    Self-monitoring:
    High operational safety in connection with EC27
    Remote control via Fieldgate (Internet)
    May be operated using ToF Tool

  • Supply / Communication

    85V ... 253V AC
    20V ... 60V DC

  • Ambient temperature

    -20 °C ... 50 °C Serial montage
    (-4 °F ... 122 °F)

  • Communication

    2 Relay
    RS485

  • Certificates / Approvals

    ATEX
    FM
    CSA
    TIIS
    WHG

  • Measuring principle

    Conductive

  • Characteristic / Application

    Transmitter with intrinsically safe signal
    Calibration using operating keys
    Permanent self monitoring, setting via push-buttons
    adjustable operating delay
    2-wire PFM
    RS232, RS485 interface
    Rail mounting: 45mm

  • Specialities

    Min / Max - changeover
    Self-monitoring:
    High operational safety in connection with EC27 / FTI51 / FTI52
    Remote control via Fieldgate (Internet)
    May be operated using ToF Tool

  • Supply / Communication

    85V ... 253V AC
    20V ... 60V DC

  • Ambient temperature

    Serial montage
    -20 °C ... 50 °C
    (-4 °F ... 122 °F)

  • Communication

    2 Relays
    RS485

  • Certificates / Approvals

    ATEX
    FM
    CSA
    TISS
    WHG/ Overfill prevention
