Prosonic FDU81F

Imagem de produto: Prosonic FDU81F

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing and control room instrumentation

  • Supply / Communication

    4-wire (HART, Profibus DP, RS 485)

  • Accuracy

    +/- 0.2 % of set measuring range

  • Ambient temperature

    -40 °C ... 95 °C
    (-40 °F ... 203 °F)

  • Process temperature

    -40 °C ... 95 °C
    (-40 °F ... 203 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 4 bar abs
    (10 psi ... 58 psi)

  • Main wetted parts

    ETFE

  • Process connection

    G / NPT 1", DN80 / 100, ASME 3" / 4"

  • Blocking distance

    0.5 m (1.6 ft)

  • Tamanho do tanque / aplicação

  • Max. measurement distance

    10 m (32 ft)

  • Communication

    Transmitter:
    4 ... 20 mA HART
    Profibus DP
    RS485

  • Certificates / Approvals

    ATEX
    FM
    CSA
    TIIS
    3A

  • Components

    Transmitter:
    FMU860 / FMU862

  • Successor

    FDU91F

  • Application limits

    Nozzle min. DN80 / 3"

    Lots of obstacles
    Check stilling well / sonic guide tube

    Thin foam layers / big bubbles
    Use stronger sensor

    Strong build up / condensation
    Ask Endress+Hauser

    Take notice of range diagram

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing and control room instrumentation

  • Supply / Communication

    4-wire (HART, Profibus DP, RS 485)

  • Accuracy

    +/- 0.2 % of set measuring range

  • Ambient temperature

    -40 °C ... 95 °C

  • Process temperature

    -40 °C ... 95 °C

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 4 bar abs

  • Main wetted parts

    ETFE

  • Process connection

    G / NPT 1",
    DN80 / 100,
    ASME 3" / 4"

  • Process connection hygienic

    3A certification

  • Blocking distance

    0.5 m

  • Max. measurement distance

    5 m

  • Certificates / Approvals

    ATEX
    FM
    CSA
    3A

  • Components

    Transmitter
    FMU860 / FMU862

  • Successor

    FDU91F

  • Application limits

    Take notice of range diagram

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification

  • Successor

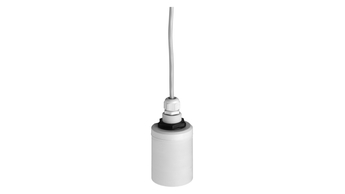

    • Prosonic S FDU91

      Ultrasonic sensor for non-contact continuous level and flow measurement for connection to the transmitter FMU90/FMU95

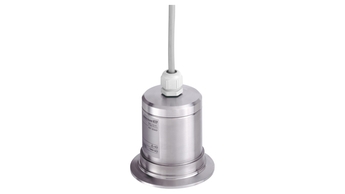

    • Prosonic S FDU91F

      Ultrasonic sensor for non-contact continuous level and flow measurement for connection to the transmitter FMU90/FMU95
