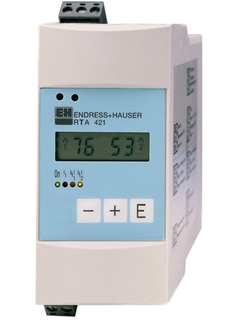

Product picture limit switch RTA421

RTA421
Limit switch

Contactor with loop power supply for monitoring current or voltage signals

RTA421
Please Wait (spinning wheel)
Carregando preços
Preço temporariamente indisponíveis
Price on request
from CHF ??.-

Especificações resumidas

  • Input

    1 x analog (U, I)

  • Output

    1 x transmitter power supply

  • Output

    1 x transmitter power supply

  • Display

    LCD 6 mm (0.24")
    4-digit
    Bargraph

  • Power Supply

    Not defined

Campo de aplicação

The RTA421 contactor monitors industrial processes for safe operation. The unit analyzes current (0/4...20 mA) and voltage signals (0/2...10 V) and switches two independent output relays if the values either exceed or undercut the preset alarm set points. On the display both limit values are indicated in parallel. The bar graph informs on the connected signal at any time. Applications include pump control in the waste water industry. Level measurement in silos can be economically achieved.

  • Plant and machine construction

  • Panel builders

  • Process monitoring

  • Process control

Benefícios

  • 2 relays for set point monitoring (with SPDT contacts)

  • Loop power supply for connected sensors

  • LC display for alarm set points and bar graph

  • Compact housing

  • Front end setup using 3 push buttons

  • DIN rail mounting, 45 mm housing width

Predecessor
