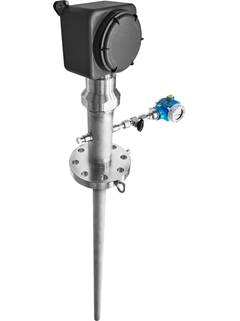

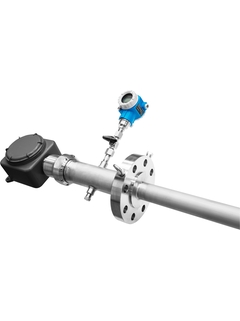

Modular straight TC and RTD multipoint thermometer with primary thermowell

The iTHERM TMS12 MultiSens Linear multipoint thermometer for oil & gas and chemical applications can be customized for various scenarios in compliance with the highest safety standards. It increases process safety by creating detailed linear temperature profiles and features a diagnostic chamber to contain and monitor leakages through the primary seals. Easy process integration reduces installation time and thus maximizes plant availability.

This product is not available in this market.

Seleção rápida

Escolha uma das opções sugeridas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Primary thermowell for superior mechanical strength and an easy replacement of individual inserts, which are available either with TC or RTD technology

    • Increased safety thanks to a diagnostic chamber able to contain the process in the event of leakages...

  • Campo de aplicação

    • Oil & Gas industry

    • Heavy chemical processes

    • Petrochemical industry

Características e especificações

Voltar

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    imperial style

    easy-to-use

    suitable for hazardous areas

    process connection: flanged

    light chemical processes

    linear sensor distribution

    modular design

    replaceable sensors during operation

    diagnostic chamber

  • Terminal head

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    Directly mounted or remote

  • Thermowell / protection tube

    with one primary thermowell (for replaceable sensors and increased mechanical protection)

  • Insert / probe

    mineral insulated (MI) sensors in a primary thermowell

  • Outer diameter protection tube / Insert

    48,3mm (1 1/2")

    60,3mm (2")

    76,1mm (2 1/2")

    88,9mm (3")

  • Max. immersion length on request

    up to 15.000,00 mm (590'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4435 (316L)

    1.4541 (321)

    1.4845 (310L)

    1.4301 (304)

    1.4307 (304L)

  • Process connection

    flange:

    1 1/2" ASME/ANSI B16.5 150
    ...900

    2" ASME/ANSI B16.5 150
    ...900

    3" ASME/ANSI B16.5 150
    ..900

    DN40 EN/DIN 1092.1 PN10
    ...PN150

    DN50 EN/DIN 1092.1 PN10
    ...PN150

    DN80 EN/DIN 1092.1 PN10
    ...PN150

  • Tip shape

    straight

  • Operating temperature range

    Type K:

    -270 °C ...1.100 °C

    (-454 °F ...2.012 °F)

    Type J:

    -210 °C ...760 °C

    (-346 °F ...1.382 °F)

    Type N:

    -270 °C …1100 °C

    (-454 °F ...2.012 °F)

    Pt100 WW; 3mm; 316L; -200...600oC

    Pt100 TF; 3mm; 316L; -50…400oC

  • Max. process pressure (static)

    at 20 °C: 240 bar (3481 psi)

  • Accuracy

    class 1 acc. to IEC 60584

    class Special ASTM E230 and ANSI MC 96.1

    IEC60751 Class A

    IEC60751 Class AA

  • Response time

    depending on configuration:


    TC:

    t50 = 21 s

    t90 = 52 s


    RTD:

    t50 = 42 s

    t90 = 108 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX

    IECEX

    UL

    FM

    CSA

  • Certification

    SIL (transmitter only)
