TW15
Barstock thermowell

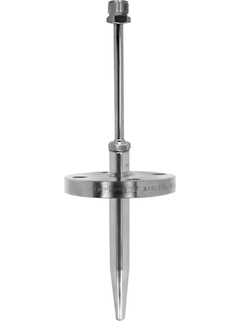

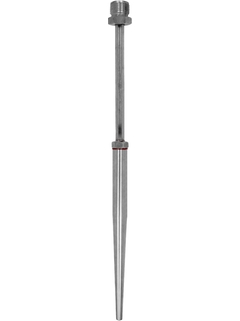

Thermowell made of drilled barstock material. Mainly used in heavy duty or industrial applications

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

Dimensionamento
Preço após o login e configuração

Comparar

Seleção rápida

Escolha uma das opções sugeridas

<%label%>
-- selected coding

-- selected label
<%label%>
Procurando mais opções? Use o configurador individual para continuar.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Procurando mais opções? Use o configurador individual para continuar.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Acessórios opcionais

Use o configurador individual para continuar.

Configuração individual

Continue sua seleção entre todas as opções possíveis

Configurar

Benefícios
Extension, immersion length and total length can be chosen according to process requirements
A wide choice of dimensions, materials and process connections is available
Special versions can be manufactured according to customer requirements
The process...

Mostrar mais
Extension, immersion length and total length can be chosen according to process requirements
A wide choice of dimensions, materials and process connections is available
Special versions can be manufactured according to customer requirements
The process connection can either be weld-in or flanged

Mostrar menos

Campo de aplicação

TW15 is designed for use with resistance and thermocouple thermometers in heavy duty applications.

Modular configuration according to DIN 43772 (form 4/4F) enable a use in all industrial processes with severe thermal and mechanical stresses.

Características e especificações

Voltar

Details

Measuring principle

Bar stock Thermowell
Characteristic / Application

metric style

DIN 43772 Form 4/4F

flanged process connection or weld-in with neck
Head connection

external thread:

M24 x 1.5

1/2" NPT
Maximum standard immersion length

250 mm (9,84")
Max. immersion length on request

400 mm (15,75")
Process connection

For welding with welding socket TA115 as accessory

For flanging with the following flange sizes:

DN25 PN40 B1

DN40 PN40 B1

DN50 PN40 B1

ASME 1" 150 RF

ASME 1" 300 RF

ASME 1 1/2" 150 RF
Thermowell root diameter

18 mm (0,71")

24 mm (0,94")
Medium contact material

1.4571 (316Ti)

2.4819 (Alloy C276)

1.7335 (13CrMo4-5)

Titan

Duplex SAF2205

C22.8

1.5415 (16Mo3)

1.7380 (10CrMo 9 10)
Wetted part finishing (Ra)

< 0.8 µm (31.50 µin)

< 1.6 µm (63.00 µin)
Tip shape

conical
Temperature range

-200...1.100 °C (-328...2.012 °F)
Max. process pressure (static)

400 bar (5802 psi)
Max. process pressure at 400 °C

400 bar (5802 psi)

Mostrar mais
Mostrar menos

Documentos / Manuais / Software

Tipo de download

Filtrar

Thermowell Omnigrad M TW15
