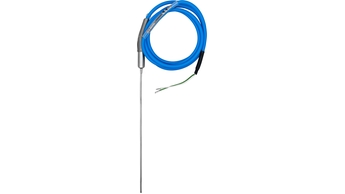

South African style thermocouple sensor, cable probe
Appropriate for applications with high process temperatures
Easy installation - with adjustable compression fitting or without process connection - various diameter inserts and customized immersion lengths lead to a high flexibility. Suitable for use in the ferrochrome industry.
Various types of thermocouples: Type J (Fe-CuNi), type K (NiCr-Ni), type N (NiCrSi-NiSi) or type T (Cu-CuNi)
Sheath material ANSI 316SS or 310SS, INCONEL 600
Customized immersion length
Campo de aplicação
The thermometer comprises of various diameter fixed inserts with either flexible tails, a quick disconnect plug or a combination of the two.
To be installed into a thermowell or directly into the process. They can also be used in all applications where small immersion lengths are needed. These assemblies are very useful in measuring temperatures in the ferrochrome industry, where lengths in excess fo 15 meters are required and where molten metal splashing occurs.
Características e especificações
Documentos / Manuais / Software
Acessórios / peças sobressalentes
