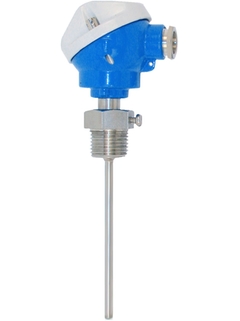

Omnigrad T TST414
Modular RTD thermometer

Omnigrad T TST414
Modular RTD thermometer ©Endress+Hauser
Omnigrad T TST414
Modular RTD thermometer ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The thermometer is mainly used in the chemical industry but also finds its use in other branches. Typical applications are processes where no strong flow is present. The device is supplied with a pocket which protects it from chemical corrosion and allows an easy replacement of the thermometer.

  • Benefícios

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Fast response time

  • Campo de aplicação

    Due to the reduced wall thickness of the pocket, it is suggested to use this thermometer assembly in processes where no strong flow is present. Special care should be given to the maximum allowed temperature surrounding the terminal head, which must be...

Características e especificações

Voltar

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    fast response time

    threaded process connection

    without neck

    incl. thermowell / protection tube (metal)

    mini-head

  • Terminal head

    TA20L - aluminium - mini-head

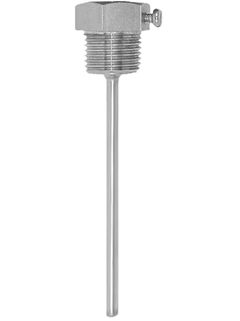

  • Thermowell / protection tube

    welded protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    4,5 mm (0,18'')

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

  • Material protection tube/ thermowell

    1.4571 (316Ti)

  • Process connection

    male thread:

    G1/2"

  • Tip shape

    straight

  • Surface roughness Ra

    1,6 μm (63,0 μin.)

  • Operating temperature range

    PT 100:

    -50 °C ...400 °C

    (-58 °F ...752 °F)

  • Max. process pressure (static)

    at 20 °C: 50 bar (725 psi)

  • Accuracy

    class A acc. to IEC 60751

    class B acc. to IEC 60751

  • Response time

    t50 = 10 s

    t90 = 30 s

  • Integration head transmitter

    no
