Average temperature measurement
High precision average temperature measurement

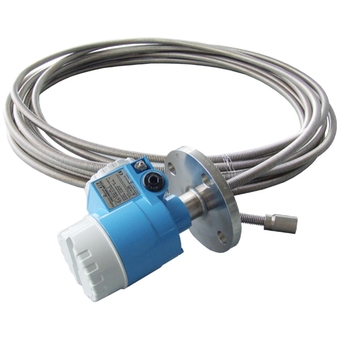

The Prothermo NMT532 is an intrinsically safe multi-signal converter with precision average temperature sensor for inventory control. It is a highly capable solution for a variety of tank gauging applications and provides constant average temperature data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot radar tank gauge.
Intrinsically safe device allowing for the safest electrical configuration possible
Compatible with FieldCare
Simple and economical
Compact size and weight
High reliability and easy installation
Campo de aplicação
For precision average temperature measurement.
Process connections: Flanges
Temperature: -20 to +100°C (-4 to +212°F)
Measuring distance: 18.5m (60.6ft)
Accuracy: ± 0.1°C
International explosion protection certificates
Documentos / Manuais / Software
Acessórios / peças sobressalentes
Nr 11 Order code 017803-0043
O-ring, electric cover, NBR
Size: D88mm, d3mm. Material: NBR. Part: electric box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.
Nr 11 Order code 017803-0044
O-ring, terminal housing, NBR
Size: D73mm, d3mm. Material: NBR. Part: terminal box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.
Nr 21 Order code 70106024
Cover, E-housing NMT532/9, M88 long type
NMT terminal Box cover, M88, Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT539.
Nr 21 Order code 017802-0008
Cover, terminal box, Alu, NMT
NMT terminal box cover, M73. Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT535/NMT536/NMT539.
Nr 31 Order code 70108677
HART ID: v.184. Usage: NMT532/NMT539.
Nr 34 Order code 58020200
Terminal, EMC filter assembly
