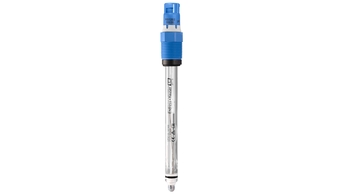

Sensor digital de pH
Orbisint CPS11D
O valor do pH de um líquido pode ser calculado pelo princípio de medição potenciométrico. Esse vídeo mostra o que é e como esse princípio de medição funciona.
Memosens converte o valor de medição para um sinal digital e transfere para o transmissor sem uma conexão de contato. Este vídeo mostra como o Memosens otimiza o controle e a manutenção do processo.
Eletrodos de vidro Memosens para aplicações padrão
O Orbisint CPS11D é o multiuso digital para a tecnologia de processo e ambiental. Isso significa confiança mesmo em meios altamente alcalinos e áreas classificadas. Desenvolvido para ter pouca manutenção e longa vida útil, o eletrodo oferece uma excelente relação custo/benefício. Graças à tecnologia digital Memosens, o CPS11D combina a máxima integridade de dados e processos com operação simples. Resiste à corrosão e à umidade, permite a calibração no laboratório e facilita a manutenção preditiva.
- F
- L
- E
- X
-
Produtos com tecnologia de ponta
- Altamente funcional e prático
Excelência técnica
Simplicidade
-
Produtos especializados
- Desenvolvidos para aplicações exigentes
Excelência técnica
Simplicidade
Variável
| Versões FLEX | Excelência técnica | Simplicidade |
|---|---|---|
Versão Fundamental Atende suas necessidades básicas de medição |
Excelência técnica
|
Simplicidade
|
Versão Lean Lida com seus principais processos facilmente |
Excelência técnica
|
Simplicidade
|
Seleção Extended Otimiza seus processos com tecnologias inovadoras |
Excelência técnica
|
Simplicidade
|
Versão Xpert Controla suas aplicações mais difíceis |
Excelência técnica
|
Simplicidade
Variável |
-
Especificações resumidas
-
Measurement range
pH 0 to 14
-
Process temperature
0 to 135 °C (32 to 275 °F)
-
Process pressure
1 to 17 bar (15 to 246 psi)
-
Loading alternative products
Componentes adicionais
-
Benefícios
Eletrodos robustos com percurso de difusão de veneno, requer pouca manutenção devido ao grande anel do diafragma PTFE repelente de sujeira
Adequado para aplicações difíceis: vidro de processo para meios altamente alcalinos e pressão estável de até 16...
-
Campo de aplicação
Monitoramento em longo prazo e limite de monitoramento de processos com condições estáveis:
- Indústria química
- Indústria de papel
- Usinas de energia (isto é arruelas de gás de combustão, água para alimentação da caldeira)
- Usinas de incineração...
