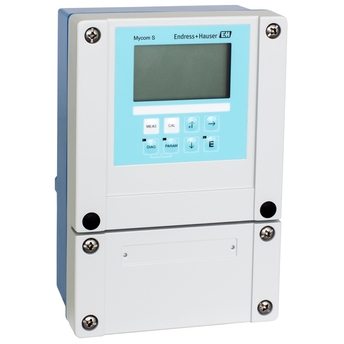

Mycom S CPM153

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Glass electrode

  • Application

    All branches

  • Characteristic

    Four-wire transmitter with data-transfer-module (DAT) for simple parametrisation and data backup.

  • Design

    pH/ORP field transmitter with PC/ABS housing.

  • Material

    Plastic aluminium housing

  • Dimension

    247x167x111 mm
    (9.63x6.51x4.32 inch)

  • Temperature sensor

    Display and current output

  • Ex certification

    Atex, FM, CSA

  • Ingres protection

    IP65

  • Input

    Two-channel transmitter

  • Output

    0/4-20 mA, Hart, Profibus

  • Additional certifications

    FM, CSA

  • Measuring principle

    Sensor ORP / Redox

  • Application

    All branches

  • Characteristic

    Four-wire transmitter with data-transfer-module (DAT) for simple parametrisation and data backup.

  • Design

    pH/ORP-field transmitter with PC/ABS housing.

  • Material

    Plastic-Aluminium housing

  • Dimension

    247x167x111mm

  • Temperature sensor

    Display and current output

  • Ex certification

    Atex, FM, CSA

  • Ingres protection

    IP65

  • Input

    Two-channel transmitter

  • Output

    0/4-20mA; Hart, Profibus.

  • Additional certifications

    FM, CSA
