Dissolved oxygen sensor

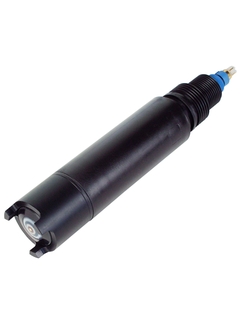

Oxymax COS41

Dissolved oxygen sensor

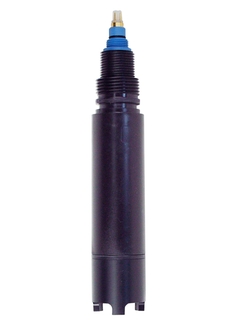

Oxymax COS41 ©Endress+Hauser
Dissolved oxygen sensor
Oxymax COS41 ©Endress+Hauser

The concentration of oxygen dissolved in a liquid can be measured using the amperometric or optical measuring principles. This video shows what it is about and how these measuring principles work.

Amperometric oxygen sensor for water, wastewater and utilities

Oxymax COS41 is a reliable and accurate oxygen sensor for all kinds of water & wastewater applications. Designed for reduced maintenance and a long operating life, the sensor offers real value for money.

  • Benefícios

    • High measurement accuracy

    • Long maintenance intervals

    • Minimum calibration effort thanks to simple air calibration

  • Campo de aplicação

    Oxymax COS41 measures the dissolved oxygen concentration in:

    • Wastewater treatment plants:
      - O2 control in the aeration basin
      - Process water treatment and monitoring

    • Water works:
      - Status monitoring of drinking water (oxygen enrichment, corrosion...

Características e especificações

Voltar

Details

  • Measuring principle

    Sensor Oxygen

  • Application

    Aeration tank, river monitoring, water treatment, fish farming.

  • Characteristic

    Amperometric 2-electrode system to measure dissolved oxygen.

  • Measurement range

    0,05 - 20mg/l

  • Measuring principle

    Closed (membrane covered) amperometric 2-electrode sensor.

  • Design

    - Extreme stable membrane- Analog communication

  • Material

    Sensor body : POMMembrane cap : POM

  • Dimension

    Diameter : 40mm
    (1.56inch)Length : 220mm
    (8.85inch)

  • Process temperature

    max. 50°C
    (122°F)

  • Process pressure

    max. 10bar
    (145psi)

  • Temperature sensor

    Integrated NTC-sensor

  • Connection

    Process connection : G1"Cable : Fixed cable or TOP68 connector

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
    • Order code 51506784

      Accessory kit COY31-Z

      Content: COY3-F, COY31-WP, COY31-OR and COY31-PF for sensors COS31, COS41 and COS51D standard

    • Order code 50053349

      Elektrolyte COY3-F

      10 pcs. plastic ampoules, for sensors COS3/3S/COS4 and COS31/41/51D/71.

  • 2
  • 1
  • 3
    • Order code 50003987

      Junction box VBM

      with 10 high-impedance terminals Protection class: IP65 Dimensions: 125 x 80 x 55 mm (L x W x H)

    • Order code 50081787

      COY 3-SK membrane protective basket

      for immersion of diss. oxygen sensors COS31/41/51D/61/61D in fish ponds.

    • Order code COS41-

      Oxymax W COS41

      Dissolved oxygen sensor, amperometric. 2 electrode cell. Application: Water, waste water. Measuring range: 0.05...20 mg/l. :: Compatibility, Sensor: COS4.

    • Order code COY8-

      Zero-point gel COY8

      Zero point: Verification, calibration, adjustment Check of zero point at oxygen sensors ::Amperometric and optical sensors ::12 and 40mm diameter ::Applicaiton in the lab, in the field

  • Predecessor
