Digital measuring cable
CYK10

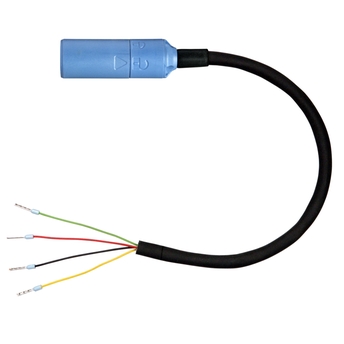

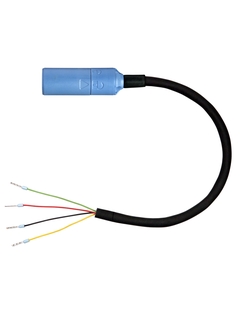

CYK10 measuring cable is used with all sensors with Memosens plug-in head. ©Endress+Hauser

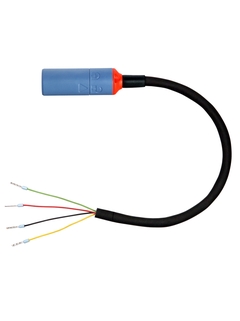

Ex-version of CYK10: indicated by an orange ring ©Endress+Hauser

Memosens data cable for all sensors with Memosens plug-in head

CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter. Its inductive coupling shows no contact corrosion and guarantees galvanic isolation of transmitter and medium. Simply forget about limited cable length, interfering potentials or moisture and benefit from completely safe and reliable signal transmission.

  • Benefícios

    • Maximum process safety through non-contact, inductive and digital signal transmission: No contact corrosion, absolutely watertight, no interference potential.

    • Increased availability of the measuring point: Digital data transmission provides an automatic...

  • Campo de aplicação

    The Memosens data cable CYK10 is applied in Memosens systems measuring the following parameters:

    • pH/ORP

    • Dissolved oxygen (amperometric)

    • Conductive conductivity

    • Disinfection

Características e especificações

Voltar

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Measuring cable for contactless, inductive, digital transmission of measurement signals.

  • Installation

    Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.

  • Characteristic

    Inductive, digital transmission of measurement signals and energy.
    Not influenced by moisture, EMC-fields and corrosion.

  • Design

    Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
    No open contacts, resistant against humidity.

  • Material

    PEEK

  • Dimension

    Diameter: 6,3 mm / 0,25"
    Cores: 2x2 cores, twisted paires
    Length: up to approx. 100 m/328 ft

  • Process temperature

    -20... 135°C

  • Temperature sensor

    For digital sensors with inductive plug-head with and without temperature sensor.

  • Ex certification

    ATEX II 1G Ex ia IIC T3/T4/T6
    FM, CSA IS Cl.1 Div 1 Gr. A-D
    ATEX, NEPSI II 3G Ex nL IIC
    TIIS

  • Additional certifications

    Also available as TÜV approved SIL version.

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Measuring cable for contactless, inductive, digital transmission of measurement signals.

  • Installation

    Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.

  • Characteristic

    Inductive, digital transmission of measurement signals and energy.
    Not influenced by moisture, EMC-fields and corrosion.

  • Measurement range

    High impedance cable not necessary.

  • Design

    Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
    No open contacts, resistant against humidity.

  • Material

    PEEK

  • Dimension

    Diameter: 6,3 mm / 0,25"
    Cores: 2x2 cores, twisted paires
    Length: up to approx. 100 m/328 ft

  • Process temperature

    -20... 135°C

  • Process pressure

    max. 50 bar/725 psi at 135°C/275°F.

  • Temperature sensor

    For digital sensors with inductive plug-head with and without temperature sensor.

  • Ex certification

    ATEX II 1G Ex ia IIC T3/T4/T6
    FM, CSA IS Cl.1 Div 1 Gr. A-D
    ATEX, NEPSI II 3G Ex nL IIC
    TIIS

  • Ingres protection

    IP68

  • Additional certifications

    Also available as TÜV approved SIL version.

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Measuring cable for contactless, inductive, digital transmission of measurement signals.

  • Installation

    Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.

  • Characteristic

    Inductive, digital transmission of measurement signals and energy.
    Not influenced by moisture, EMC-fields and corrosion.

  • Design

    Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
    No open contacts, resistant against humidity.

  • Material

    PEEK

  • Dimension

    Diameter: 6,3 mm / 0,25"
    Cores: 2x2 cores, twisted paires
    Length: up to approx. 100 m/328 ft

  • Process temperature

    -20... 135°C

  • Temperature sensor

    For digital sensors with inductive plug-head with and without temperature sensor.

  • Additional certifications

    Also available as TÜV approved SIL version.

  • Measuring principle

    Sensor ORP / Redox

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Measuring cable for contactless, inductive, digital transmission of measurement signals.

  • Installation

    Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.

  • Characteristic

    Inductive, digital transmission of measurement signals and energy.
    Not influenced by moisture, EMC-fields and corrosion.

  • Design

    Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
    No open contacts, resistant against humidity.

  • Material

    PEEK

  • Dimension

    Diameter: 6,3 mm / 0,25"
    Cores: 2x2 cores, twisted paires
    Length: up to approx. 100 m/328 ft

  • Process temperature

    -20... 135°C

  • Temperature sensor

    For digital sensors with inductive plug-head with and without temperature sensor.

  • Ex certification

    ATEX II 1G Ex ia IIC T3/T4/T6
    FM, CSA IS Cl.1 Div 1 Gr. A-D
    ATEX, NEPSI II 3G Ex nL IIC
    TIIS

  • Additional certifications

    Also available as TÜV approved SIL version.
