Flow assembly for chlorine dioxide sensors Flowfit CCA151

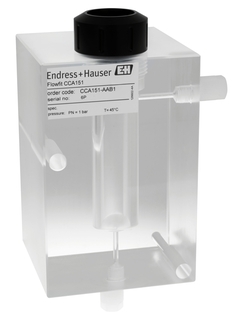

Flowfit CCA151: Flow assembly for chlorine dioxide sensors ©Endress+Hauser
Flowfit CCA151 flow assembly with Memosens CCS50D chlorine dioxide sensor installed ©Endress+Hauser

Simple assembly for drinking and process water applications

Flowfit CCA151 is a simple flow assembly for disinfection parameters such as chlorine dioxide that do not require pH compensation. Sensors installed in the acrylic glass assembly need only a sample flow as low as 5 l/h (1.32 gph) for accurate measurement. This enables precise control of disinfection processes with minimal water loss. Thanks to flexible mounting options for panels, walls and pipes, Flowfit CCA151 places the disinfection sensor at an optimal position for best measuring results.

Seleção rápida

Escolha uma das opções sugeridas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>


Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Minimum water loss: When installed in Flowfit CCA151, sensors require a sample flow as low as 5 l/h (1.32 gph) for precise chlorine dioxide measurement. Only a very small volume of water goes to waste.

    • Reliable measurement: Flexible mounting options...

  • Campo de aplicação

    CCA151 is a flow assembly for the measurement of disinfection parameters without pH compensation, e.g. chlorine dioxide in:

    • Drinking water

    • Utilities of all industries

    • Applications with low sample volumes

Características e especificações



  • Measuring principle

    Free chlorine

  • Application

    Drinking water
    Utilities of all industries
    For low sample flow

  • Characteristic

    Flow through assembly for one disinfection sensor

  • Design

    Flow assembly with direct inflow to the membran

  • Material

    Plexiglas (PMMA)

  • Dimension

    85 mm x 85 mm x 220 mm
    (3.35 inch x 3.35 inch x 8.64 inch)

  • Process temperature

    Max. 60 °C
    (Max. 140 °F)

  • Process pressure

    Max. 4 bar relative
    (Max. 58 psi relative)

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Order code
