Prosonic FDU82

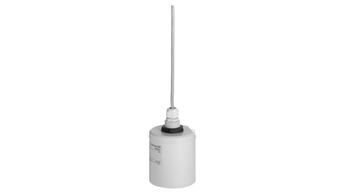

Imagem de produto: Prosonic FDU82

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing and control room instrumentation

  • Supply / Communication

    4-wire (HART, Profibus DP, RS 485)

  • Accuracy

    +/- 0.2 % of set measuring range

  • Ambient temperature

    -40 °C ... 80 °C

  • Process temperature

    -40 °C ... 80 °C

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 2 bar abs

  • Main wetted parts

    PP

  • Process connection

    G / NPT 1"

  • Blocking distance

    0.8 m

  • Max. measurement distance

    10 m

  • Certificates / Approvals

    ATEX
    FM
    CSA

  • Components

    Transmitter
    FMU860 / FMU862

  • Successor

    FDU92

  • Application limits

    Take notice of range diagram

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing and control room instrumentation

  • Supply / Communication

    4-wire (HART, Profibus DP, RS 485)

  • Accuracy

    +/- 0.2 % of set measuring range

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 2 bar abs
    (10 psi ... 29 psi)

  • Main wetted parts

    PP

  • Process connection

    G / NPT 1"

  • Blocking distance

    0.8 m (2.6 ft)

  • Tamanho do tanque / aplicação

  • Max. measurement distance

  • Communication

    Transmitter:
    4 ... 20 mA HART
    Profibus DP
    RS485

  • Certificates / Approvals

    ATEX
    FM
    CSA
    TIIS

  • Components

    Transmitter:
    FMU860 / FMU862

  • Successor

    FDU92

  • Application limits
