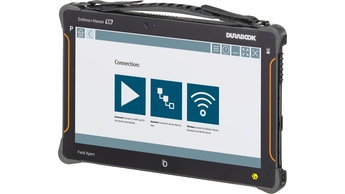

The Field Xpert SMT70 tablet PC for universal device configuration supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP). The devices can be connected directly via a suitable interface e.g. a modem (point-to-point) or a bus system (point-to-bus).
Input
Camera: • 5 MP camera on the back with auto focus and LED flash with 1500 mcd • 2 MP camera on the front Scanner: • 1D/2D barcode scanner
CPU
Intel Core i5-5200U (2,2...2,7 GHz)
Memory
• 8 GB with DDR3L adapter • 256 GB SSD M2-SATA robust version • Micro SD card slot, support for SDHC/SDXC
Power supply
Replaceable, rechargeable lithium polymer battery, 11.1 VDC, 4100 mAh (45 Wh)/7800 mAh (86 Wh) (optional)
Dimensions (WxHxD)
298.5 mm x 192 mm x 20 mm (11.4 in x 7.48 in x 0.78 in)
• 2 x USB 3.0 • Intel Wireless AC7260 802.11 a/b/g/n/ac, DUAL Band WLAN • Bluetooth 4.0 BLE, Class 1 • 4G LTE WWAN + 12 channel GPS (optional)
Operation
Operating system: Windows 10 IoT Enterprise
Configuration
Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes more than 2,700 pre-installed device and communication drivers.
Optional
4G LTE WWAN + 12 channel GPS
Certificates
Degree of protection: • IP65 Shock resistance: • MIL-STD 810G 516.6 Procedure IV Electromagnetic Compatibility: Interference conformance to • EN 55022: 2010+ AC: 2011 • EN 55022 Class B • EN 61000-3-2 • EN 61000-3-3 Interference immunity to • EN 55024: 2010 • IEC 61000-4-2 • IEC 61000-4-3 • IEC 61000-4-4 • IEC 61000-4-5 • IEC 61000-4-6 • IEC 61000-4-8 • IEC 61000-4-11 Hazardous area approval: ATEX (Europe) • ATEX II 3G Ex ic IIC T4 Gc IP64 • ATEX II 3D Ex ic IIIB T135°C Dc IP 64 NEC/CEC (North America) • NEC/CEC Class 1, Div. 2, Group A-D T4 • NEC/CEC Class 1, Zone 2, Group IIC T4 IECEx (International) • IECEx Ex ic IIC T4 Gc IP64 • IECEx Ex ic IIIB T135° Dc IP64 Radio approval: • CE, FCC, IC
