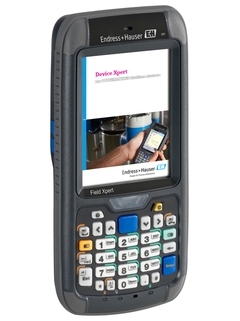

Field Xpert SFX350

Ruggedized mobile computer (PDA) for commissioning and maintenance of field devices. Efficient device configuration and device diagnostics for HART and FOUNDATION fieldbus devices in Non-Ex-areas.

OMAP Multi Core Processor 1GHz

512 MB RAM, 1 GB Flash Memory,
16 GB Micro-SD Card (up to 32 GB supported)

Lithium-ion battery, compliant with IEEE 1725 (removable, rechargeable), 3.7 Volts, 4000 mAh

169 mm x 80 mm x 34 mm
(6.65" x 3.14" x 1.35")

High resolution 3.5" touchscreen display, Gorilla glass protected, ambient light sensor, LED backlight, automatic portrait/landscape screen rotation.

VGA (640 x 480 pixels), 65.536 colors

• USB
• Wireless LAN
• Bluetooth
• Infrared
• Wireless WAN (optional)

Operating system:
Microsoft Windows Embedded Handheld 6.5.3,
German or English (depending on the order)

Configuration software:
• Device Xpert HART
• Device Xpert FOUNDATION fieldbus
• Device Xpert HART and Device Xpert FOUNDATION fieldbus

• Wireless WAN
• GPS

Drop specification:
MIL-STD 810G
Electromagnetic Compatibility:
Interference conformance to
• EN 55022: 2006 + A1: 2007
• EN 61000-3-2: 2006
• EN 61000-3-3: 2008
Immunity conformance to
• EN 55024: 1998 + A1: 2001 + A2: 2002
Ingress protection:
IP67, NEMA Type 4
Explosion protection:
None
CE Mark
Hazardous area approval:
None
Telecommunication approval:
FCC w/HAC, Industries Canada, CE, A-tick (AU),
C-tick (NZ), NCC, OFTA, IDA, ICASA, POSTEL,
NTC, ETA, SIRIM, ANATEL, 61 countries in total
Electrical safety:
UL (DEMKO), cULus listed
