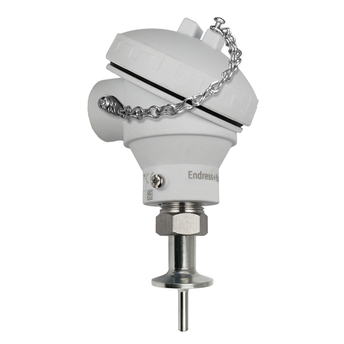

U.S. Style RTD-Assembly TH18

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    modular temperature assembly

    hygienic design

    hygienic process connection

  • Terminal head

    TA20J - SS - deep-drawn w. or w/o. display

    TMT162 - aluminium - fieldhousing w. or w/o. display

    TMT142 - aluminium - fieldhousing w. or w/o. display

    TU401 - Alu - screwed cover w. chain

    PP plastic - screwed cover w. chain - FDA listed material

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    5/32'' (3,97 mm)

  • Max. immersion length on request

    up to 4.877 mm (192,00'')

  • Material protection tube/ thermowell

    1.4404 (316L)

  • Process connection

    hygienic:

    clamp connections TRI-Clamp / Micro-Clamp

  • Tip shape

    straight

  • Surface roughness Ra

    0,5 μm (20 μin.)

  • Operating temperature range

    PT 100:

    -50 °C ... 200 °C

    (-58 °F ... 392 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    63% rt = 2,0 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    FM IS

    CSA IS

    FM/CSA IS

    CSA

  • Certification

    FDA

    3A

    ASME BPE 2003

    SIL (transmitter only)
