Detecção de nível pontual
condutivo
Liquipoint FTW33

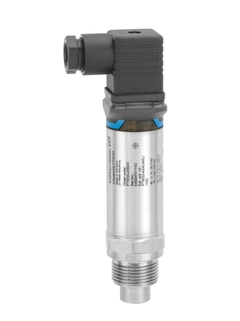

Liquipoint FTW33 ©Endress+Hauser

Demonstração do Liquipoint FTW33 em diferentes meios

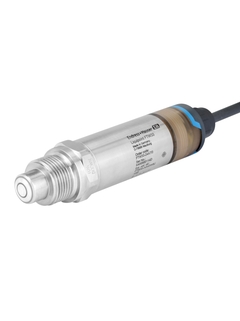

Liquipoint FTW33 ©Endress+Hauser

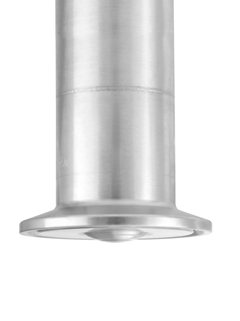

Liquipoint FTW33 ©Endress+Hauser

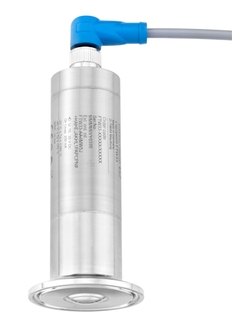

Liquipoint FTW33 ©Endress+Hauser

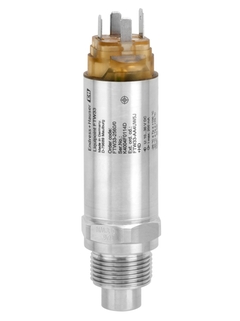

Liquipoint FTW33 ©Endress+Hauser

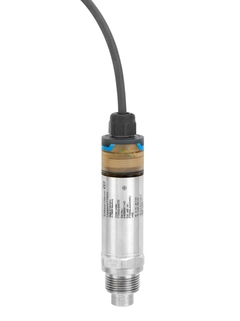

Liquipoint FTW33 ©Endress+Hauser

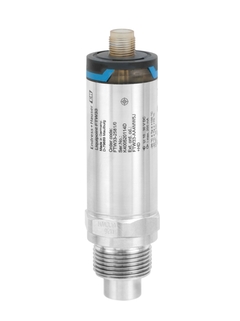

Liquipoint FTW33 ©Endress+Hauser

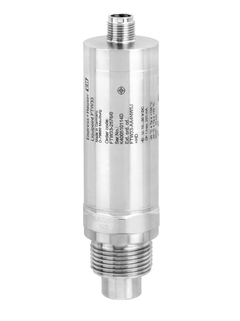

Liquipoint FTW33 ©Endress+Hauser

Sonda de montagem flush muito compacta para meios líquidos e pastosos

O Liquipoint FTW33 foi desenvolvido para as indústrias dos segmentos de alimentos e atende todas as especificações de higiene internacionais. O equipamento também pode ser voltado para todos os segmentos industriais. Para uso em meios pastosos, viscosos e com incrustação pesada.
Avançado:
- Fluidos com base em óleo e água e meios pastosos/viscosos
Confiável:
- Compensação de incrustação ativa
- Verificação da função com ímã de teste
Fácil:
- Sem calibração ou ajuste necessário
- Função plug-&-play sem quaisquer ferramentas específicas

  • Benefícios

    • Combinação perfeita para a indústria higiênica devido ao projeto de montagem flush, o que permite a pigagem de tubos

    • Medição segura e confiável devido à compensação de incrustação, assegurando comutação confiável

    • Não é necessário fazer o ajuste individual...

  • Campo de aplicação

    Para uso em tubos e em armazenamento, recipientes de mistura e processo com ou sem um agitador. Para líquidos com condutividade elétrica >1 μS/cm ou constante dielétrica >2. Desenvolvido para a indústria alimentícia. Detecção de ocorrência de espuma...

Características e especificações

Voltar

Details

  • Measuring principle

    Conductive

  • Characteristic / Application

    Compact point level switch for using in pipes and in storage, mixing and process vessels with or without an agitator, for water based or oil based media, with active build up compensation,flush mounting

  • Specialities

    CIP and SIP suitable

    Conductive foam is detectable or can be switched off

  • Supply / Communication

    10…30 V DC

  • Ambient temperature

    -40 ... 70°C

    (-40 ... 158°F)

  • Process temperature

    Standard:
    -20 ... 100°C


    Cleaning:
    -20 ... 150°C for 1h

    ( -4 ... 302°F for 1h)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 25 bar

    (Vacuum ... 362,5 psi)

  • Main wetted parts

    Sensor: 316L

    Sensor isolation: PEEK

  • Process connection

    Thread G1, G1/2, G3/4, M24

  • Process connection hygienic

    Clamp ISO 2852 1 to 1 1/2", 2",
    DIN11851 Pipe union

  • Communication

    DC PNP

  • Certificates / Approvals

    CSA C/US

  • Design approvals

    EN 10204-3.1

  • Hygienic approvals

    3A, EHEDG

  • Options

    Weld-in adapter,

    Process adapter for hygienic process connections

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Nr
Order code
Specification
    • Order code

      Unit is not repairable.

    • Order code 71280307

      Valve Plug ISO4400 M16, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280349

      Valve plug ISO4400 NPTF1/2, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Order code 71280350

      Valve plug ISO4400 QUICKON, 4-pole

      Consists of: plug connector, screw, seal, Usage: FTL31/FTL33, FTW33.

    • Order code 52006263

      Socket for plug 4p-125V, 4A-M12

      M12 socket for plug. Self confectionery connection. Usage: plug M12.

    • Order code 52024216

      Cable 4x0,34, box M12, 316L, 90o, L=5m

      M12x1 plug. 5m cable PVC, 316L lock. Especially for hygiene applications.

    • Order code 52018763

      Cable 4x0.34, box M12, 316L,LED,90o,L=5m

      M12 socket for plug + integrated LED. 5m cable PVC, 316L lock. Especially for hygiene applications. Usage: device + switch output.

    • Order code 52010285

      Cable 4x0.34, box M12,Cu Sn/Ni,90o,L=5m

      M12 plug connector. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B.

    • Order code 52021717

      O-ring 14.9x2.7 VMQ, FDA, 5 pieces

      Material: silicone VMQ 75. Usage: weld-in adapter G3/4, FTL20H, FTL31/FTL33, FTW33.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs. Material: silicone VMQ 70. Usage: weld-in adapter G1 (52001051), FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL260, FTL330H/FTL330L, FTW33, PMP23, PMP135, PTP35. Weld-in adapter G1, 3.1 (52011896), FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMP23, PMP135, PTP35. Sliding sleeve, Soliphant T.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5pcs.

      Material: silicone VMQ. FDA. Usage: weld-in adapter G1, adjustable, 316L (52001221), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: weld-in adapter G1, adjustable, 316L (52011898), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: process connection flush mounted, FTL50H/FTL51H. Usage: weld-in adapter G1, adjustable, FTL20H, FTL31/FTL33, FTL330H/FTL330L.

    • Order code 71194296

      Sealing ring DIN7603-A 21x26, FA, 5pcs.

      Process gasket. Usage: process connection G1/2, FTL31/FTL33, FTW23, FTW33.

    • Order code 71185027

      Sealing ring DIN7603-A 27x32, FA, 5pcs.

      Process gasket. Usage: process connection G3/4, FMP50/FMP51/FMP56, FTL31/FTL33, FTL50/FTL50H, FTL80/FTL81, FTW23, FTW33.

    • Order code 52014048

      Sealing ring DIN7603-A 33x39 FA, 5pcs.

      Process gasket. Usage: process connections G1.

    • Order code 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35. process adapter M24.

    • Order code 52010156

      Socket wrench 32AF

      Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33.

    • Order code 71267011

      Test magnet

      Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51H, FTW23, FTW33.

    • Order code 71258357

      Weld-in adapter G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33.

    • Order code 52028295

      Weld-in adapter G3/4, d=29, 316L, 3.1

      Flush mount process connection. For pipe-mounting. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33.

    • Order code 71258355

      Weld-in adapter G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

    • Order code 52018765

      Weld-in adapter G3/4 d=50, 316L, 3.1

      Flush mount process connection Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, 11371. Usage: TMR35.

    • Order code 71258358

      Weld-in adapter G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 52001047

      Weld-in adapter RD52, 316L

      Flush mount process connection. Material: 316L. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/330L.

    • Order code 52006909

      Weld-in adapter RD52, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/FTL330L.

    • Order code 52023997

      Process adap.M24 Variv. N DN50 PN40,316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024004

      Proc.adap.M24 Variv.N DN50 PN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52023996

      Process adap. M24 Variv.F DN32 PN40,316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024003

      Proc.adap.M24 Variv.F DN32 PN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52023998

      Process adapter M24 DIN11851 DN50, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024005

      Process adap. M24 DIN11851 DN50,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52026997

      Process adapter M24 SMS 1-1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52026999

      Process adapter M24 SMS 1-1/2",316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52021715

      Union nut DIN11851, F25, SS

      Flush mount weld in adapter 52001047 and DIN11851 DN25. Usage: FTL20H, FTL33, FTW33.

    • Order code 71258359

      Union nut DIN11851, F32, 304

      DIN11851 DN32. Usage: FTL20H, FTL33.

    • Order code 71258361

      Union nut DIN11851, F40, 304

      DIN11851 DN32. Usage: FTL20H, FTL33, FTW33, PMP23, PTP33B.
