Sodium analyzer CA76NA

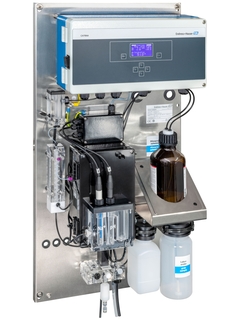

CA76NA - Potentiometric sodium analyzer for the monitoring of boiler feedwater, steam, condensate ©Endress+Hauser

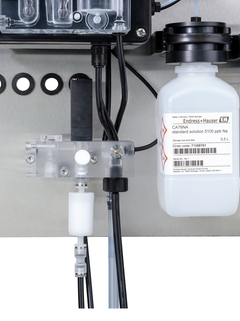

Multi-sequencer for up to 6 sample channels ©Endress+Hauser

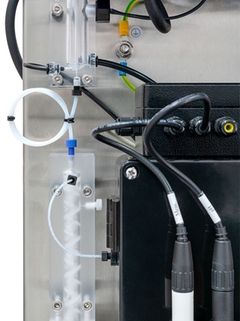

Flow-through cell with separate pH electrode ©Endress+Hauser
Easy commissioning of the CA76NA sodium analyzer ©Endress+Hauser
  • CA76NA - Potentiometric sodium analyzer for the monitoring of boiler feedwater, steam, condensate
  • Multi-sequencer for up to 6 sample channels
  • Flow-through cell with separate pH electrode
  • Easy commissioning of the CA76NA sodium analyzer

Potentiometric system for the monitoring of boiler feedwater, steam, condensate and ion exchangers

Protect your water steam cycles and ion exchangers with the CA76NA sodium analyzer! An increase in sodium levels in high-purity or boiler feedwater indicates the presence of unwanted dissolved impurities. This can cause serious damage and consequently expensive repairs. CA76NA provides highly accurate online monitoring of water quality and enables fast detection of critical events. The sodium analyzer supports your preventive maintenance strategy to keep your power plant running.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Measurement range

      0.1 to 9999 µg/l (ppb) Na

    • Process temperature

      10 to 40 °C
      (50 to 104 °F)

    • Process pressure

      1 to 5 bar (abs)
      14.5 to 72.5 psi

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CA76NA
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
Carregando preços
Preço temporariamente indisponíveis
from CHF 803.-
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

Componentes adicionais

  • Benefícios

    • Protection of expensive plant equipments in the power industry: CA76NA sodium analyzer monitors low levels of sodium in water steam cycles detecting carryover and impurities in your power plant.

    • Early indication of condenser leaks via online sodium...

  • Campo de aplicação

    The CA76NA sodium analyzer monitors low levels of sodium in the power industry and utilities:

    • Indication of the purity of water and steam used in boilers and turbines.

    • Provision of early warning for condenser leakages or malfunction of ion exchangers.

    • ...

Características e especificações

Voltar

Details

  • Measuring principle

    Potentiometric / ISE

  • Characteristic

    Analyser for sodium in boiler feedwater, steam, condensate and ion exchangers

  • Size

    850 x 450 x 250 mm
    33.5 x 17.7 x 9.8 inch

  • Design

    Panel stainless steel 1.4301

  • Process temperature

    10 to 40 °C
    (50 to 104 °F)

  • Ambient temperature

    5 to 40 °C
    (41 to 104 °F)

  • Process pressure

    1 to 5 bar (abs)
    14.5 to 72.5 psi

  • Sample flow rate

    10 to 15 l/h
    2.64 to 3.96 gal/h

  • Application

    Online sodium monitoring in boiler feed water, water steam cycles, condensate and ion exchangers

  • Power supply

    100 to 240 V AC, 50/60 Hz

  • Output / communication

    0/4 to 20 mA

  • Measurement range

    0.1 to 9999 µg/l (ppb) Na

  • Consumables

    CA76NA sodium electrode,
    CA76NA pH combination electrode
    CA76NA standard solution 5100 ppb Na
