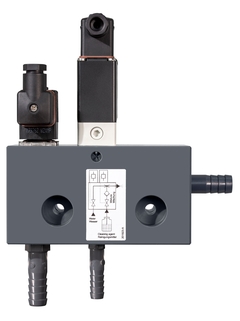

Cleaning injector Chemoclean CYR10B

Cleaning injector Chemoclean CYR10B ©Endress+Hauser

Cleaning injector for spray cleaning and retractable assemblies

The injector CYR10B enables the realization of fully automated sensor cleaning systems including cleanser dosing. Dosing is realized by motive water which generates a negative pressure and thus allows the suction of a liquid without an extra dosing pump. The cleaning control is carried out via the Chemoclean functionality of the Liquiline CM44 transmitters and allows individually configurable cleaning or rinsing cycles.

Seleção rápida

Escolha uma das opções sugeridas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • Easy handling of rinsing media thanks to concentrate dosing using motive water (vacuum pump).

    • Adjustable dosing ratio of motive water and cleaning concentrate.

    • Realization of flushing and cleaning cycles without additional dosing pump.

    • High chemical...

  • Campo de aplicação

    The CYR10B cleaning injector is a spray cleaning system for pH / ORP sensors as well as
    oxygen and turbidity sensors.

Características e especificações

Voltar

Details

  • Measuring principle

    Glass electrode

  • Application

    Automatic cleaning

  • Characteristic

    Vacuum pump (driven by motion water)

  • Material

    PVC
