Conductive
Point level detection
Triple rod probe 11363Z

High resistant probes for corrosive liquids in plastic vessels

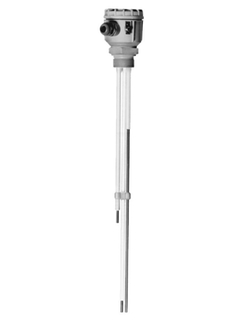

  • Probe 11363Z ©Endress+Hauser

The triple rod probe 11363Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. Three different limit points can be detected with one probe in vessels with electrically conducting walls.

Benefícios

  • Reliable and safe measurement

  • Safe measurement even for applications in explosion-hazardous area

  • Variable process connections for various applications

Campo de aplicação

Two-point point level detection in plastic vessels and vessels made of non-conducting material. For applications in explosion-hazardous areas or as overfill prevention for water-polluting liquids.

  • Process connections: Threads and flanges

  • Measuring range: 100 to 4,000mm (5.9 to 157")

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +30bar (-15 to +435psi)

  • Components: Transmitter FTW325

  • International explosion protection certificates, overfill prevention WHG

Características e especificações

Documentos / Manuais / Software

Acessórios / peças sobressalentes

Predecessor / Successor

Predecessor: 11363
