Point level detection
Point level switch for liquids with highly corrosion-resistant coating

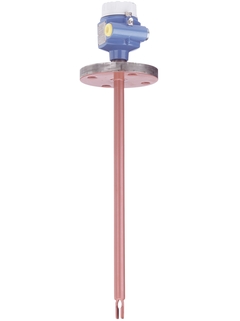

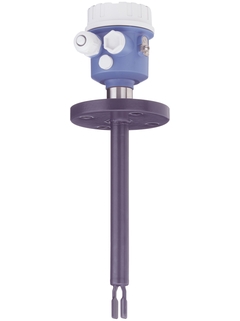

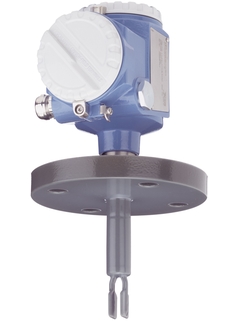

Liquiphant FTL51C is a point level switch with extension tube and highly corrosion resistant coating. For use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
IEC 61508/IEC 61511-1
Different plastic coating (PFA) and enamel coating for applications with aggressive medias
International explosion protection certificates and overfill prevention certificate (WHG)
No calibration required, easy to start up
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
Second line of defense to protect the environmental
Variety of standardized process connections for all applications
Campo de aplicação
Point level switch for all liquids with highly corrosion-resistant coating.
Process connections: Flanges and hygienic process connection (FDA conform with PFA)
Temperature: -50 to +150°C (-58 to +302°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Sensor material: ECTFE, PFA (Edlon, Rubyred, conductive), Enamel
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
Características e especificações
Documentos / Manuais / Software
Acessórios / peças sobressalentes
Predecessor / Successor
Predecessor: CS1103, CS1113, CS1203, CS1213, CS1603, CS1613, FDL30, FDL31, FDL35, FDL36, FTL360, FTL361, FTL365, FTL366
Density measurement of liquids with Density Computer FML621
Measurement of density, reference density, concentration of liquids in conjunction with a Liquiphant. Also for use in hazardous areas with international explosion protection certificates.
