Radiometric measurement

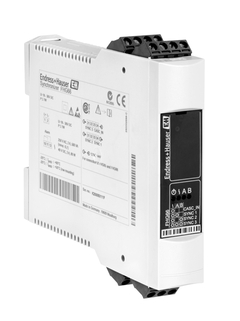

Synchronizer FHG66

Synchronization of an unlimited number of Gamma Modulators FHG65 for unhindered measurement

The Gamma Synchronizer FHG66 is made for synchronization of an unlimited number of Gamma Modulators FHG65 for unhindered measurement with Gammapilot FMG60. The Gamma Modulator FHG65 is made for effective suppression of background and extraneous radiation (e. g. from non-destructive materials testing). The FHG66 observes the correct operation of just one single modulator.

Dimensionamento
Preço após o login e configuração

Comparar

Seleção rápida

Escolha uma das opções sugeridas

<%label%>
-- selected coding

-- selected label
<%label%>
Procurando mais opções? Use o configurador individual para continuar.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Procurando mais opções? Use o configurador individual para continuar.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Acessórios opcionais

Use o configurador individual para continuar.

Configuração individual

Continue sua seleção entre todas as opções possíveis

Configurar

Benefícios
Unhindered measurement with Gammapilot FMG60 in the event of interference radiation from non-destructive material testing up to 50μSv/h or fluctuating background radiation
Highest system safety thanks to safe measuring signals
Continuing measurements...

Mostrar mais
Unhindered measurement with Gammapilot FMG60 in the event of interference radiation from non-destructive material testing up to 50μSv/h or fluctuating background radiation
Highest system safety thanks to safe measuring signals
Continuing measurements which increase plant availability and reliability
Cost efficient system without maintenance requirements
Easy installation in conjunction with FQG61/62 source containers
Easy integration into existing systems and fast operation

Mostrar menos

Campo de aplicação
Synchronization of an unlimited number of Gamma Modulators FHG65

Observation of single modulators

Características e especificações

Voltar

Details

Measuring principle

Radiometric Limit
Communication

Relay: 1x SPDT

Measuring principle

Radiometric Density
Characteristic / Application

Synchronization of an unlimited number of Gamma Modulators FHG65
Supply / Communication

DC: 18...36 V
Ambient temperature

Mounted individually:

-20°C ...60°C

( -4°F ... 142°F)

Mounted in a row without lateral spacing:

-20°C... 50°C

( -4°F ...122°F)

Installed in protective housing:

-20°C ... 40°C

( -4°F ... 104°F)
Options

Relay: 1x SPDT
Specialities

If multiple Gamma Modulators FHG65 are used

Mostrar mais
Mostrar menos

Measuring principle

Radiometric
Characteristic / Application

Synchronization of an unlimited number of Gamma Modulators FHG65
Specialities

If multiple Gamma Modulators FHG65 are used
Supply / Communication

DC: 18...36 V
Ambient temperature

Mounted individually:

-20°C ...60°C

( -4°F ... 142°F)

Mounted in a row without lateral spacing:

-20°C... 50°C

( -4°F ...122°F)

Installed in protective housing:

-20°C ... 40°C

( -4°F ... 104°F)
Communication

Relay: 1x SPDT

Mostrar mais
Mostrar menos

Measuring principle

Radiometric Limit
Communication

Relay: 1x SPDT

Measuring principle

Radiometric
Characteristic / Application

Synchronization of an unlimited number of Gamma Modulators FHG65
Specialities

If multiple Gamma Modulators FHG65 are used
Supply / Communication

DC: 18...36 V
Ambient temperature

Mounted individually:

-20°C ...60°C

( -4°F ... 142°F)

Mounted in a row without lateral spacing:

-20°C... 50°C

( -4°F ...122°F)

Installed in protective housing:

-20°C ... 40°C

( -4°F ... 104°F)
Communication

Relay: 1x SPDT

Mostrar mais
Mostrar menos

Documentos / Manuais / Software

Tipo de download

Filtrar

Technical Information Gamma Modulator FHG65/Synchronizer FHG66 Radiometric Level Measurement
Effective suppression of background radiation and extraneous radiation
at the Gammapilot M FMG60

Technical Information (TI)
Operating Instructions Gamma Modulator FHG65/Synchronizer FHG66 Radiometric Level Measurement
Effective suppression of background radiation and extraneous radiation
at the Gammapilot M FMG60

Operating Instruction (BA)
Synchronizer FHG66
Synchronization of multiple Gamma Modulators FHG65

Short Instruction (KA)

Alemão , Inglês
Radiometric Solutions
White Paper
Gamma density measurement & calibration

Case Studies (CS)

12/16

Inglês
Accessory Radiometry
Código do Produto: FHG66-
Número declaração: HE_00586_01.17
especificação do fabricante: RoHS

Manufacturer Declaration

Chinês
Accessory Radiometry
Código do Produto: FHG66-

EU Declaration

Alemão , Inglês , fr
Gammapilot, Gammapilot M, Accessory Radiometry
Código do Produto: FHG65-, FHG66-, FMG60-, FTG20-
Região: Russia (TR CU)
Agente Certificador: EAC
Número da Certificação: TC № RU D-DE.AG95.B.00343

Miscellaneous

Russo
Gammapilot, Gammapilot M, Accessory Radiometry
Código do Produto: FHG65-, FHG66-, FMG60-, FTG20-
Região: Russia (Declaration of Conformity), Russia (TR CU)
Agente Certificador: EAC
Número da Certificação: RU D-DE.MO10.B.05292

Miscellaneous

Russo
Accessory Radiometry
Código do Produto: FHG65-, FHG66-
Região: China
Agente Certificador: ACMA
Número da Certificação: EC12027A

Miscellaneous

Inglês
Gammapilot M, Strahlenschutzbehälter, Accessory Radiometry
Código do Produto: FHG65-, FHG66-, FMG60-, FQG60-, FQG61-, FQG62-, FQG63-, QG020-, QG100-, QG2000-
Região: Kazakhstan
Agente Certificador: KazInMetr
Número da Certificação: 13810

Metrology

Russo
Gammapilot M, Accessory Radiometry
Código do Produto: FHG66-
Região: Canada, USA
Agente Certificador: CSA

Ordinary Location Product Safety

Inglês

Mostrar mais
Mostrar menos

Acessórios / peças sobressalentes

Buscar

Filtrar

Order code

Specification

- Order code

  Zur Anzeige der Ersatzteile bitte

  Exibir detalhes Ocultar detalhes
- Order code

  folgende Teilenummer eingeben

  Exibir detalhes Ocultar detalhes
- Order code 71060806

  Synchronizer FHG66

  Pulse generator for Modulator FHG65. Rail mounting, IP20. Power supply: 18-36VDC. Switch output: 1x relay SPDT.

  Exibir detalhes Ocultar detalhes

Mostrar mais
Mostrar menos
