Especificações resumidas
-
Max. measurement error
Volume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (liquid): ±0.85%
Mass flow (steam, gas): ±1.7 % -
Measuring range
Liquid: 0.99 to 545 m³/h (0.58 to 321 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 13.8 to 7262 m³/h (8.12 to 4274 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air
with 25 °C, 4.4 bar a (77 °F, 63.8 psi a) -
Medium temperature range
–40 to +400 °C (–40 to +752 °F)
-
Max. process pressure
Class 900
-
Wetted materials
Measuring tube: SA‐106 grade B/SA‐333 grade 6
Bluff body, inspection ports: SA‐105/SA‐350 LF2
DSC sensor: UNS N07718 similar to Alloy 718, 2.4668
Connection: SA‐105/SA‐350 LF2
Campo de aplicação

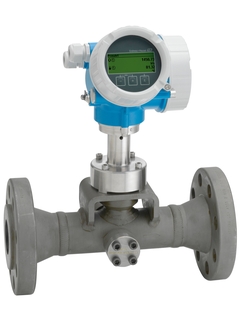

Prowirl C 200 is a product line of carbon steel vortex meters dedicated to the Canadian and American market. The carbon steel sensor offers higher resistance to inter-granular stress corrosion cracking, especially in steam systems for SAGD applications. Prowirl C 200 is only available with cCSAus hazardous area approvals. It is NOT available with CE mark, AD2000 or PED. It is available as compact or remote device version.
For steam applications with high chloride content (SAGD) aligned with AER Directive 017 Guidelines.
Device properties
Sensor made of carbon steel
Material for low medium temperatures
Display module with data transfer function
Robust two-chamber housing
Plant safety: CSA C/US and SIL approvals
Benefícios
Compliance to AER – enables customer to fulfill inspection requirements
Higher process control – unique inspection concept allows visual assessment of primary element
High process safety - resistant to intergranular stress corrosion cracking
Convenient device wiring – separate connection compartment
Safe operation – no need to open the device due to display with touch control, background lighting
Integrated verification – Heartbeat Technology™
