Deltatop DO69S

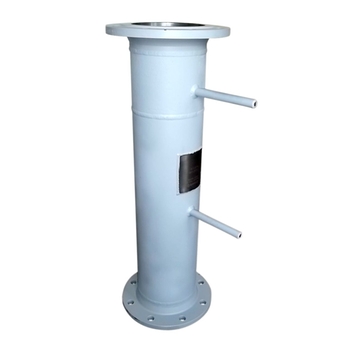

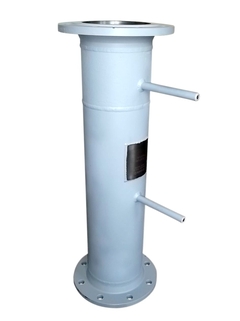

Deltatop DO69S - Differential pressure flow ©Endress+Hauser

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

Características e especificações

Voltar

Details

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Special designs.

  • Sensor features

    Internationally standardized.
    Nominal pipe size DN10...2000 ; 3/8...80".
    Meter runs.
    Weld-In versions.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...2000
    3/8" ... 80"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.
    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    0.4 ... 600'000 m3/h
    2.0 kg/h ... 3'000 t/h at 10bar/230°C

  • Max. process pressure

    PN2,5 ... 400
    Cl.150 ... 4500

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Special designs.

  • Sensor features

    Internationally standardized.
    Nominal pipe size DN10...2000 ; 3/8...80".
    Meter runs.
    Weld-In versions.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...2000
    3/8" ... 80"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

  • Measuring range

    0.02 ... 70'000m3/h

  • Max. process pressure

    PN2,5 ... 400
    Cl.150 ... 4500

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Special designs.

  • Sensor features

    Internationally standardized.
    Nominal pipe size DN10...2000 ; 3/8...80".
    Meter runs.
    Weld-In versions.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 10...2000
    3/8" ... 80"

  • Max. measurement error

    typically < 1,5% of calculated volume or mass acc. ISO5167 without calibration.
    Uncertainty of primary element excluding uncertainty of density or compensation."

  • Measuring range

    0.4 ... 600'000 m³/h

  • Max. process pressure

    PN2,5 ... 400
    Cl.150 ... 4500

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI
