Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline

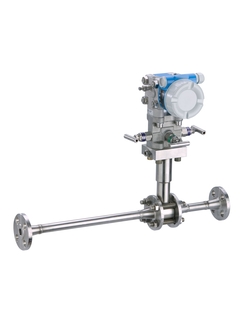

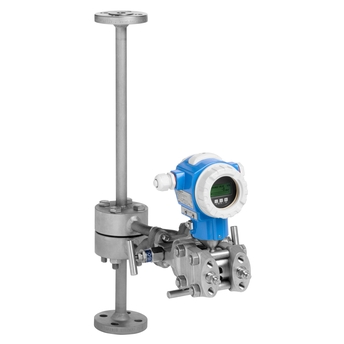

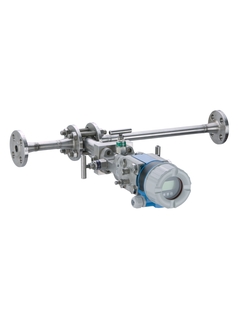

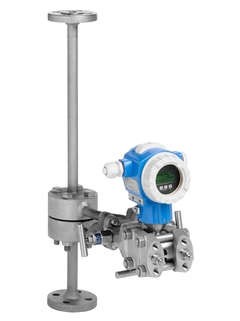

Calculated volume or mass flow measurement. dp primary element (orifice). Orifice meter run with annular chamber corner taps.
Sensor features
Internationally standardized. Including pipe section. Small pipe sizes DN10...50 ; 3/8...2". Exchangeable orifice plate. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 10...50 3/8" ... 2"
Max. measurement error
typically < 1,5% of calculated volume or mass. DN < 25 / 1" calibration recommended. Uncertainty of primary element excluding uncertainty of density or compensation.
Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline
Calculated volume or mass flow measurement. dp primary element (orifice). Orifice meter run with annular chamber corner taps.
Sensor features
Internationally standardized. Including pipe section. Small pipe sizes DN10...50 ; 3/8...2". Exchangeable orifice plate. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 10...50 3/8" ... 2"
Max. measurement error
typically < 1,5% of calculated volume or mass. DN < 25 / 1" calibration recommended. Uncertainty of primary element excluding uncertainty of density or compensation.
