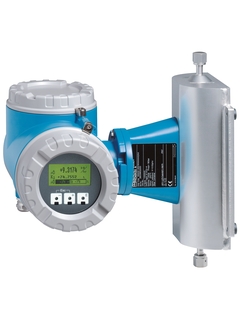

Promass 83A

Coriolis

The single‐tube flowmeter for smallest quantities with extended transmitter functionality. Measuring accurately smallest quantities of liquids and gases for continuous process control.

Highest process safety – self‐drainable measuring tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 400 bar (5800 psi).

Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.

DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 450 kg/h (0 to 16.5 lb/min)

PN 40, Class 300, 20K, 400 bar (5800 psi)

–50 to +200 °C (–58 to +392 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
Relay

2 modular inputs:
Status
0‐20 mA (active)/4‐20 mA (active/passive)

HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485,
EtherNet/IP

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL
CRN
3-A

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

CRN

3.1 material

3-A

Coriolis

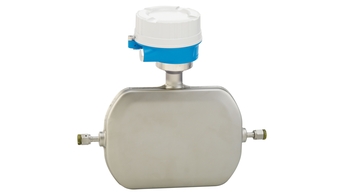

The single-tube system for highest measuring accuracy with minimal flow rates.

-20...+65°C
(-4...+140°F)

-50...+200°C
(-58...+392°F)

PN 16...400
Cl 150...600
JIS 10...63K

904L/1.4539
Alloy C22/2.4602

4...20mA
Pulse/Frequency (10KHz), active/passive
Relays/Status

ATEX
FM
CSA

Coriolis

The single‐tube flowmeter for smallest quantities with extended transmitter functionality. Measuring accurately smallest quantities of liquids and gases for continuous process control.

Highest process safety – self‐drainable measuring tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 400 bar (5800 psi).

Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.

DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 450 kg/h (0 to 16.5 lb/min)

PN 40, Class 300, 20K, 400 bar (5800 psi)

–50 to +200 °C (–58 to +392 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
Relay

2 modular inputs:
Status
0‐20 mA (active)/4‐20 mA (active/passive)

HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

CRN

3.1 material

3-A
