The flowmeter for minimized cost of ownership combined with a compact field transmitter. Highly accurate measurement of liquids and gases for a wide range of standard applications.
Sensor features
Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, temp). Space-saving installation – no in/outlet run needs. Compact dual-tube system. Medium temperature up to +140 °C (+284°F).
Transmitter features
Cost-effective – dedicated design for low-end applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line backlit display without local operation. Device in compact version.
Mass flow (liquid): ±0.5 % Volume flow (liquid): ±0.5 % Mass flow (gas): ±1.0 % Density (liquid): ±0.0005 g/cm³
Measuring range
0 to 180 000 kg/h (0 to 6600 lb/min)
Max. process pressure
PN 100, Class 600, 63K
Medium temperature range
–40 to +140 °C (–40 to +284 °F)
Ambient temperature range
Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F)
Sensor housing material
1.4301 (304), corrosion resistant
Transmitter housing material
Powder-coated die-cast aluminium
Degree of protection
IP67, type 4X enclosure
Display/Operation
2-line backlit display without push buttons (direct integration) Configuration via operating tools possible
Outputs
3 outputs: 0-20 mA (active)/4-20 mA (active/passive) Pulse/frequency/switch output (passive)
Inputs
Status input
Digital communication
HART
Power supply
DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz)
Hazardous area approvals
ATEX, IECEx, FM, CSA, NEPSI, JPN
Product safety
CE, C-tick, EAC marking
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Marine approvals and certificates
Marine approval
Pressure approvals and certificates
PED, CRN
Material certificates
3.1 material
Hygienic approvals and certificates
3-A
Measuring principle
Coriolis
Product headline
The flowmeter for minimized cost of ownership combined with a compact field transmitter. Highly accurate measurement of liquids and gases for a wide range of standard applications.
Sensor features
Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, temp). Space-saving installation – no in/outlet run needs. Compact dual-tube system. Medium temperature up to +140 °C (+284°F).
Transmitter features
Cost-effective – dedicated design for low-end applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line backlit display without local operation. Device in compact version.

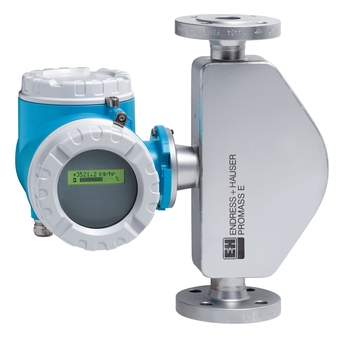

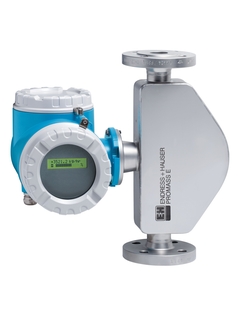

Coriolis Mass Flow Measuring System Promass 40 E, the new mass flow
measuring system with low cost
and basic functionality – the economical alternative to conventional
volume flow meters. The description of the device functions are in a
separate documentation.
Coriolis Mass Flow Measuring System Promass 40 E, the new mass flow measuring system with low cost and basic functionality – the economical alternative to conventional volume flow meters. The description of the device functions are in a separate documentation.
